Release Info
| Catalog ID | NES-LJ-NOE |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | November 13, 1990 |
| Publisher | Nintendo |
| Developer | Zippo Games |
| Players | 1 |
| Peripherals | NES Controller |

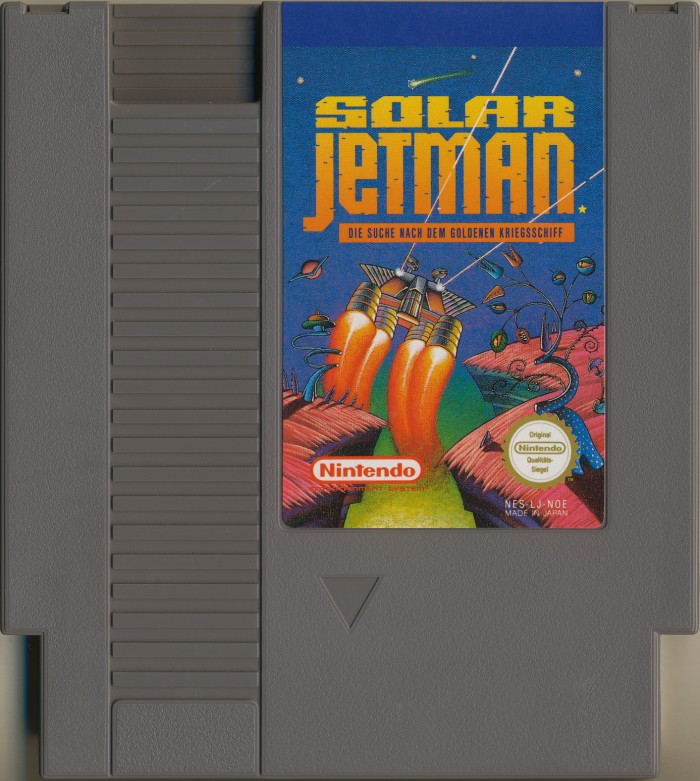

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-LJ-NOE |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-AOROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9047 |
| Est First Run | November 1990 |
| PCB Class | NES-AOROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-LJ-0 PRG | 256 KB | 8904149E | 7 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP232048D 0052 | Mask ROM 256 KB | DIP-32 | 0LM 70 | 9046 | |
| U2 CHR RAM | Sharp | LH5160YF-10L | SRAM 8 KB | DIP-28 | 043 B | 9043 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9047 A | 9047 | |
| U4 HC161 | Phillips | PC74HC161P | 74-161 Series | DIP-16 | 9035 Hnn | 9035 | 666510T |
