Release Info
| Catalog ID | NES-LJ-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | September 1990 |
| Publisher | Tradewest |
| Developer | Zippo Games |
| Players | 1 |
| Peripherals | NES Controller |

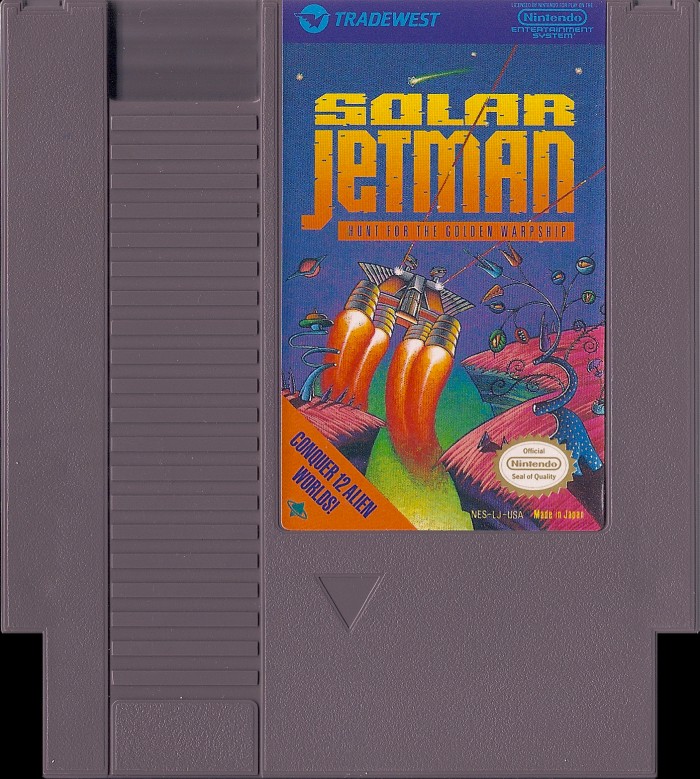

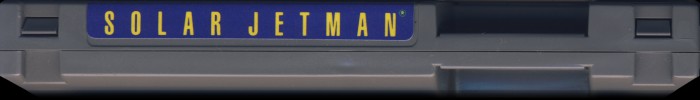

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-LJ-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 19 |
PCB Properties
| Name | NES-AOROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9031 - 9034 (3) |
| Est First Run | August 1990 |
| PCB Class | NES-AOROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-LJ-0 PRG | 256 KB | 8111BA08 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH5322 0L | Mask ROM 256 KB | DIP-32 | 9031 D | 9031 | |
| U2 CHR RAM | Panasonic | MN4464-08LL | SRAM 8 KB | DIP-28 | 0 B1 | 9027 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9029 3 CA | 9029 | |
| U4 HC161 | Phillips | PC74HC161P | 74-161 Series | DIP-16 | 9027 Hnn | 9027 | 662470T |
