Release Info
| Catalog ID | NES-LJ-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed |
| Release Date | September 26, 1991 |
| Publisher | Nintendo |
| Developer | Zippo Games |
| Players | 1 |
| Peripherals | NES Controller |

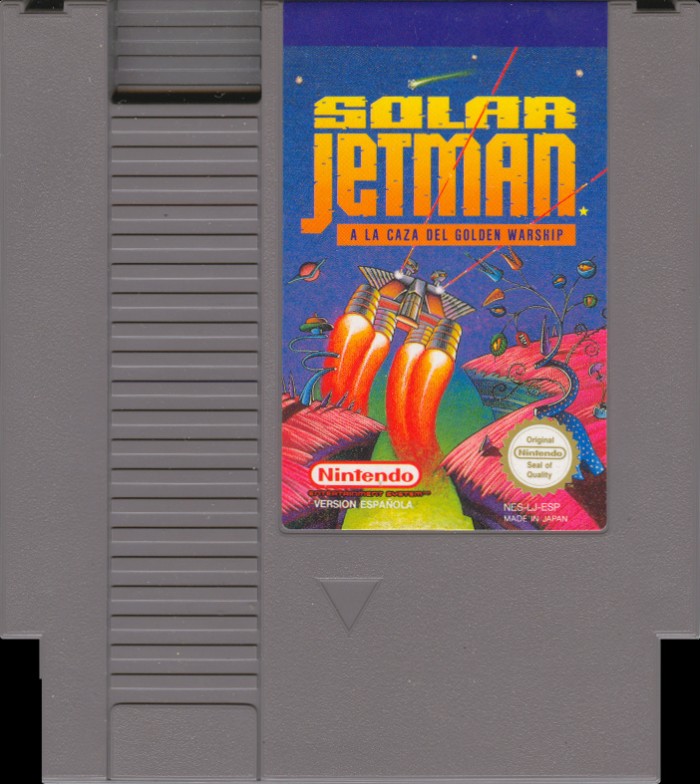

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-LJ-ESP |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 19 |
PCB Properties
| Name | NES-AOROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9128 |
| Est First Run | July 1991 |
| PCB Class | NES-AOROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-LJ-0 PRG | 256 KB | 8904149E | 7 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP232048E 0052 | Mask ROM 256 KB | DIP-32 | 1FB 7A | 9123 | |
| U2 CHR RAM | Sanyo | LC3564PL-10 | SRAM 8 KB | DIP-28 | 07 445 | 9027 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9128 A | 9128 | |
| U4 HC161 | GoldStar | GD74HC161 | 74-161 Series | DIP-16 | 9037 | 9037 |
