Release Info
| Catalog ID | KOE-XJ |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | June 29, 1990 |
| Publisher | Koei |
| Developer | Koei |
| Players | 5 |
| Peripherals | Famicom Controller |

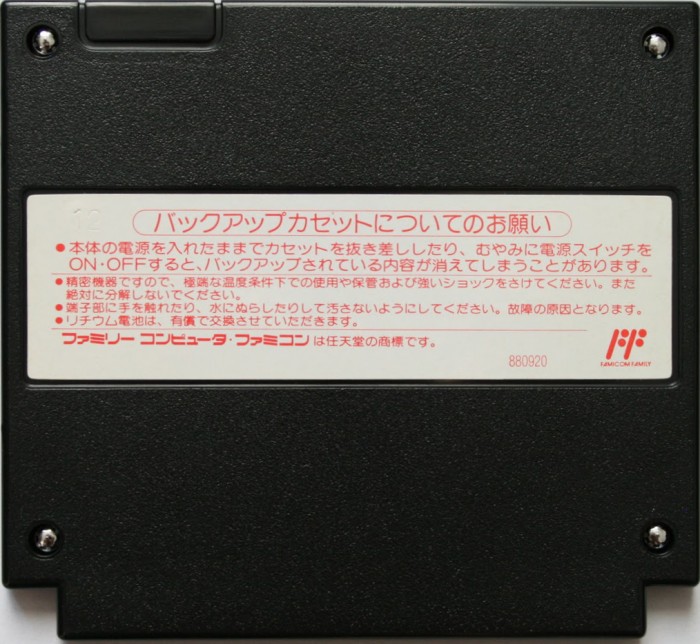

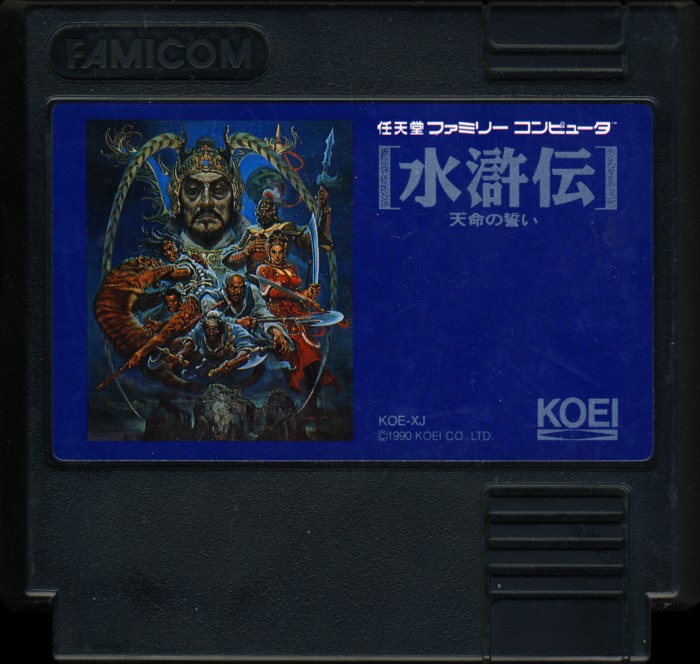

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Large w/ Famicom Logo |
| Embossed Text | |
| Front Label ID | KOE-XJ |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

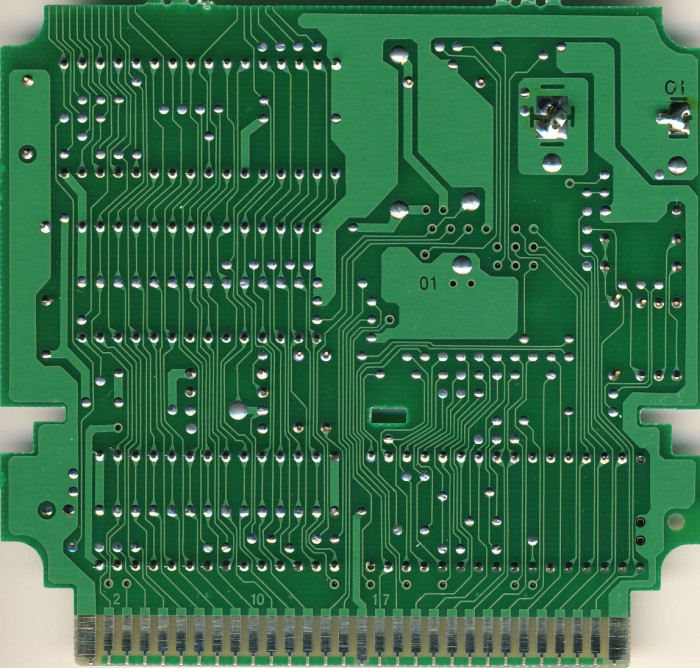

PCB Properties
| Name | HVC-ETROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9021 |
| Est First Run | May 1990 |
| PCB Class | HVC-ETROM |
| iNES Mapper | 5 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 16 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC5 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KOE-XJ-0 PRG | 256 KB | E6C28C5F | 1 |
| CHR0 | KOE-XJ-0 CHR | 128 KB | 7B1BAF5D | 1 |
| N/A | ROMs Combined | 384 KB | 39F2CE4B | 1 |

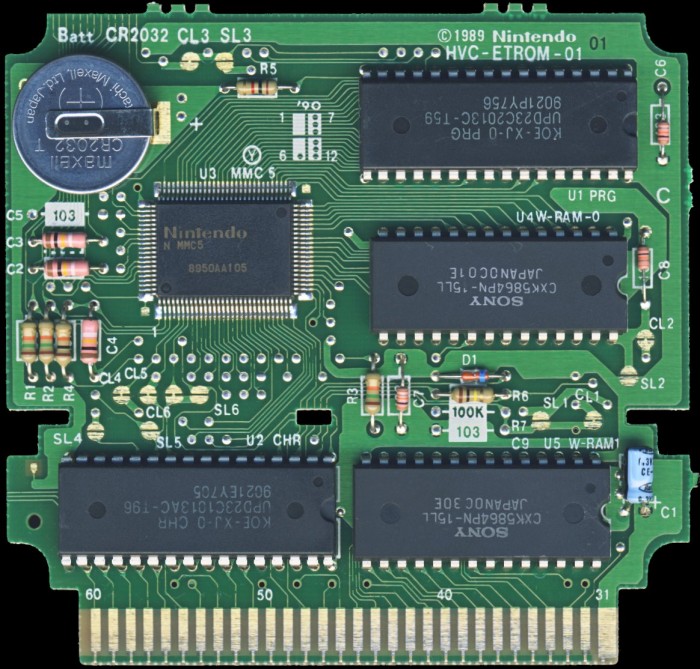

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013C T59 | Mask ROM 256 KB | DIP-32 | 9021 PY756 | 9021 | |
| U2 CHR | NEC | UPD23C1013AC T96 | Mask ROM 128 KB | DIP-32 | 9021 EY705 | 9021 | |
| U3 MMC5 | NEC | MMC5 | Nintendo MMC5 | PQFP-100 | 8950 AA105 | 8950 | |
| U4 W-RAM-0 | Sony | CXK5864PN-15LL | SRAM 8 KB | DIP-28 | 0C 01E | 9009 | |
| U5 W-RAM-1 | Sony | CXK5864PN-15LL | SRAM 8 KB | DIP-28 | 0C 80E | 9009 |
