Release Info
| Catalog ID |
TDF-KJ |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
January 22, 1988 |
| Publisher |
Toei Animation |
| Developer |
Shouei System |
| Players |
1 |
| Peripherals |
Famicom Controller |

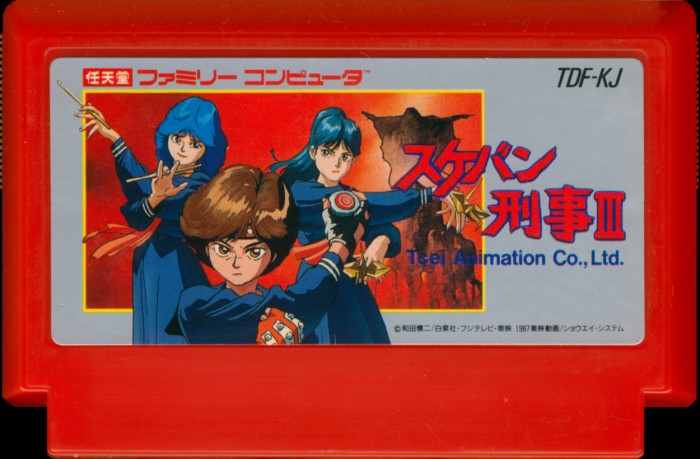

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Red |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
TDF-KJ |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
05 |
PCB Properties
| Name |
HVC-UNROM-03 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8751 |
| Est First Run |
December 1987 |
| PCB Class |
HVC-UNROM |
| iNES Mapper |
2 |
| Mirroring |
Vertical |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx161, 74xx32 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
TDF-KJ-0 PRG |
128 KB |
02863604 |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| PRG-ROM |
Sharp |
LH2310
BJ
|
Mask ROM
128 KB
|
DIP-28 |
8751
D
|
8751 |
|
| CHR RAM |
NEC |
64S20
|
SRAM
8 KB
|
DIP-28 |
8748
M5
|
8748 |
|
| LS161 |
Panasonic |
MN74HC161
|
74-161 Series
|
DIP-16 |
7?
|
8722 |
|
| LS32 |
Panasonic |
MN74HC32
|
74-32 Series
|
DIP-14 |
7?
|
8748 |
|
