Release Info
| Catalog ID | TJC-Q7 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | June 28, 1991 |
| Publisher | Technos |
| Developer | Technos |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Light Grey |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TJC-Q7 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

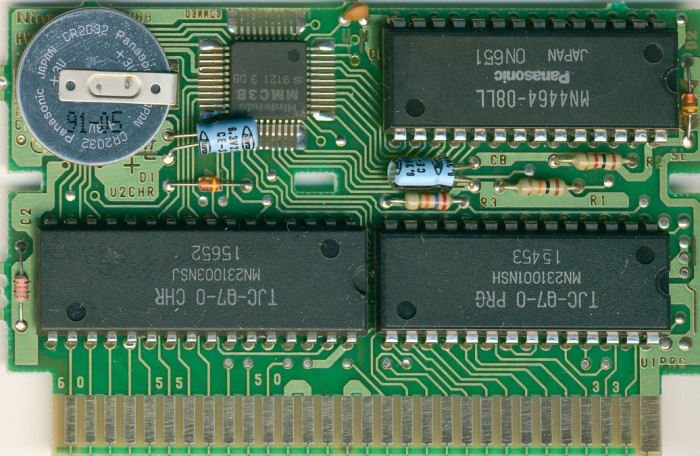

PCB Properties
| Name | HVC-TKROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9121 |
| Est First Run | May 1991 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TJC-Q7-0 PRG | 128 KB | E19A2473 | 1 |
| CHR0 | TJC-Q7-0 CHR | 128 KB | 784AFCB0 | 1 |
| N/A | ROMs Combined | 256 KB | 1411005B | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Panasonic | MN231001 NSH | Mask ROM 128 KB | DIP-28 | 1 53 | 9121 | |
| U2 CHR | Panasonic | MN231003 NSJ | Mask ROM 128 KB | DIP-32 | 156 52 | 9120 | |
| U3 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9121 3 DB | 9121 | |
| U4 W-RAM | Panasonic | MN4464-08LL | SRAM 8 KB | DIP-28 | 0N6 51 | 9046 |
