Release Info
| Catalog ID | NES-BR-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | May 1987 |
| Publisher | Data East |
| Developer | Data East |
| Players | 2 |
| Peripherals | NES Controller |

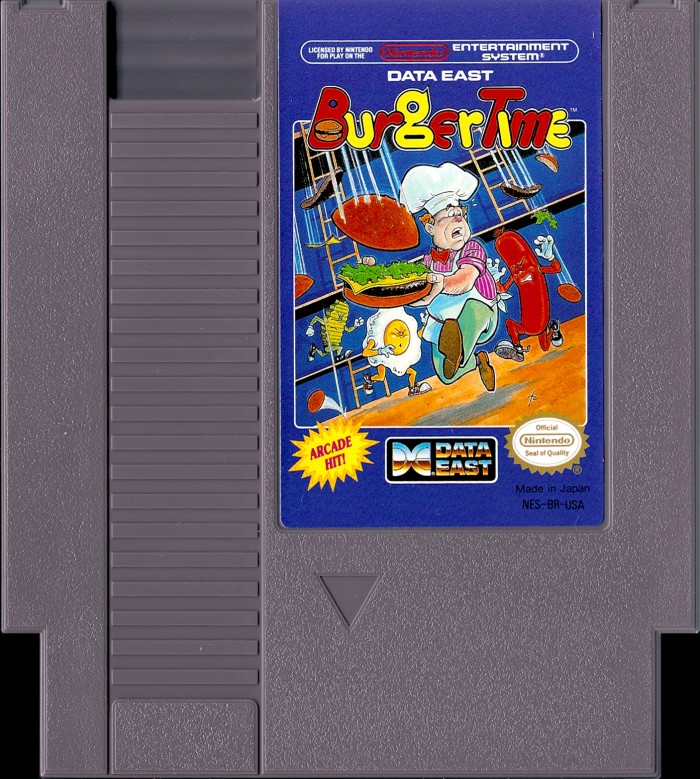

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-BR-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

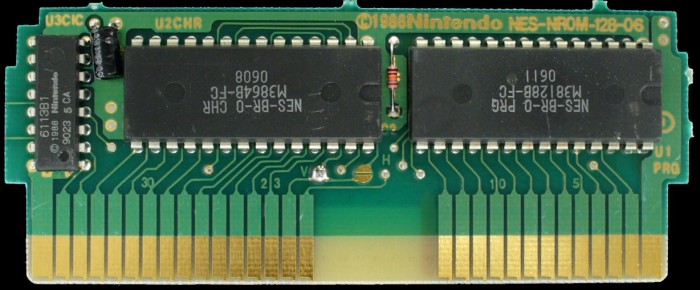

PCB Properties
| Name | NES-NROM-128-06 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8723 - 9023 (3) |
| Est First Run | June 1987 |
| PCB Class | NES-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-BR-0 PRG | 16 KB | 2B2D47F1 | 3 |
| CHR0 | NES-BR-0 CHR | 8 KB | 6268215D | 3 |
| N/A | ROMs Combined | 24 KB | DAF9D7E3 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | OKI | M38128B FC | Mask ROM 16 KB | DIP-28 | 06 11 | 9022 | |
| U2 CHR | OKI | M3864B FC | Mask ROM 8 KB | DIP-28 | 06 08 | 9022 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9023 5 CA | 9023 |
