Release Info
| Catalog ID | NAM-NBT-4500-11 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 27, 1985 |
| Publisher | Namco |
| Developer | Data East |
| Players | 2 |
| Peripherals | Famicom Controller |

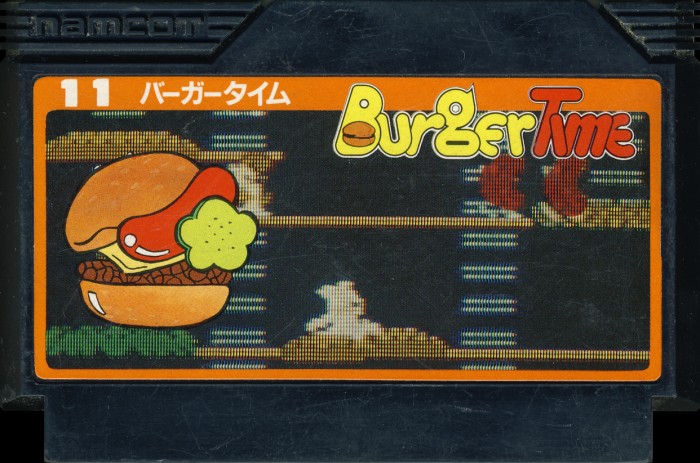

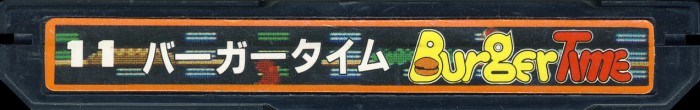

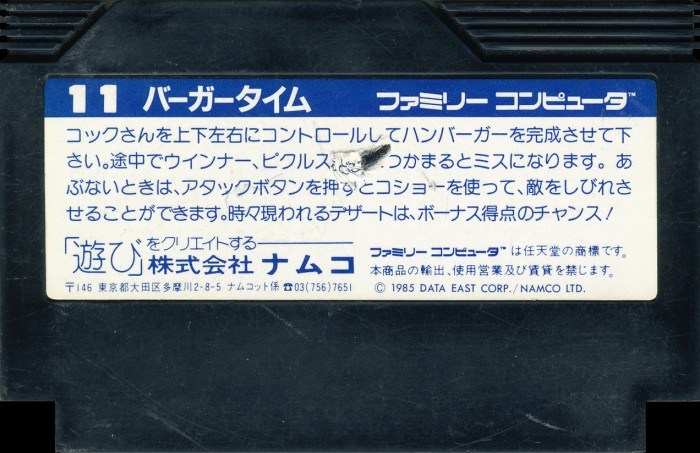

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | 11 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

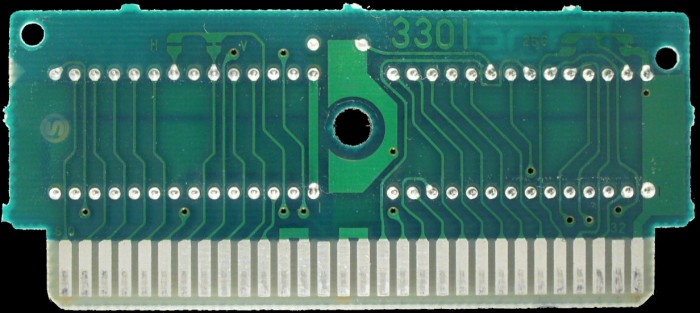

PCB Properties
| Name | 3301 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8517 |
| Est First Run | April 1985 |
| PCB Class | NAMCOT-3301 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 16 KB | F9C22E00 | 1 |
| CHR0 | Not Present | 8 KB | DB2FBCCD | 1 |
| N/A | ROMs Combined | 24 KB | CE67507A | 1 |

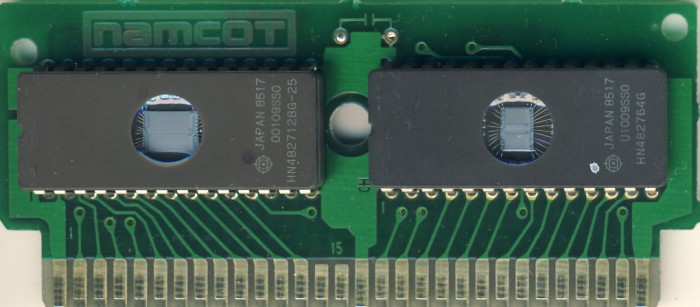

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | Hitachi | HN4827128G-25 | UV EPROM 16 KB | DIP-28 | 8517 | 8517 | 00109SS0 |
| CH | Hitachi | HN482764G | UV EPROM 8 KB | DIP-28 | 8517 | 8517 | U1009SS0 |
