Release Info
| Catalog ID | NES-KE-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | July 1987 |
| Publisher | Tecmo |
| Developer | Tecmo |
| Players | 1 |
| Peripherals | NES Controller |

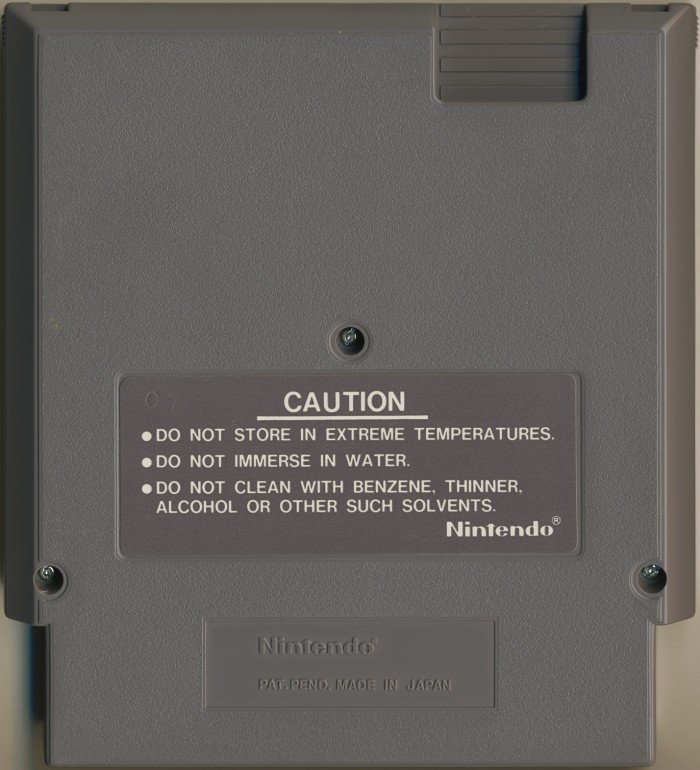

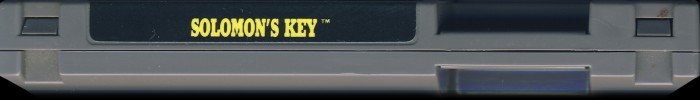

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |

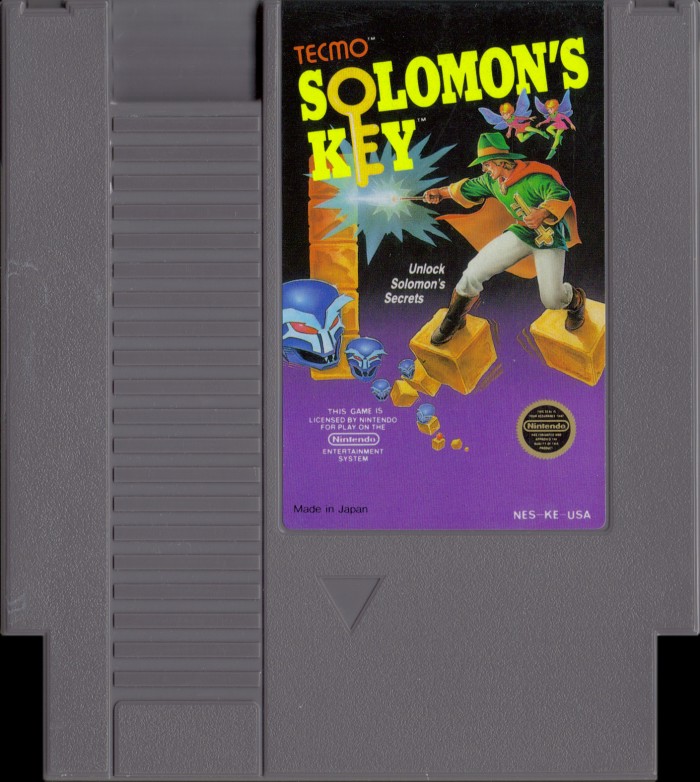

| Front Label ID | NES-KE-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 12 |

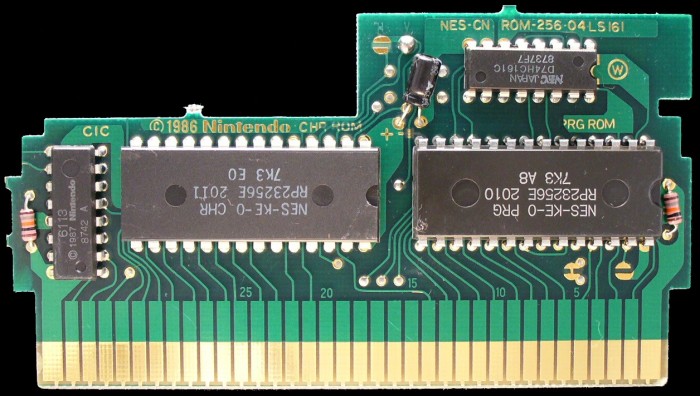

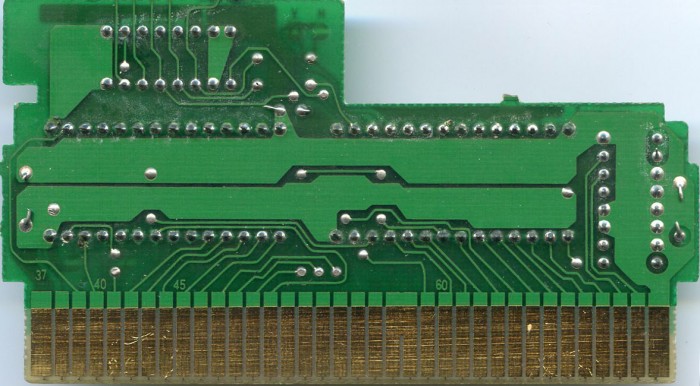

PCB Properties
| Name | NES-CN-ROM-256-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8722 - 8743 (2) |
| Est First Run | June 1987 |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113 |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-KE-0 PRG | 32 KB | 0771C34F | 3 |
| CHR0 | NES-KE-0 CHR | 32 KB | FAD8A464 | 6 |
| N/A | ROMs Combined | 64 KB | 40684E95 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Ricoh | RP23256E 2010 | Mask ROM 32 KB | DIP-28 | 7K3 A8 | 8743 | |
| CHR ROM | Ricoh | RP23256E 2011 | Mask ROM 32 KB | DIP-28 | 7K3 E0 | 8743 | |
| CIC | Sharp | 6113 | Nintendo CIC | DIP-16 | 8742 A | 8742 | |
| LS161 | NEC | D74HC161C | 74-161 Series | DIP-16 | 8737 F7 | 8737 |
