Release Info
| Catalog ID | NES-KE-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | March 30, 1990 |
| Publisher | Tecmo |
| Developer | Tecmo |
| Players | 1 |
| Peripherals | NES Controller |

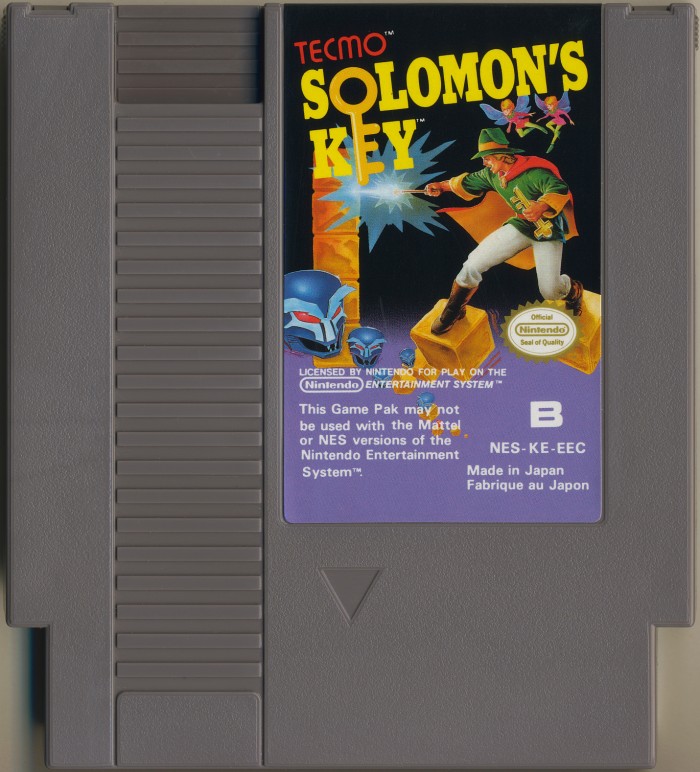

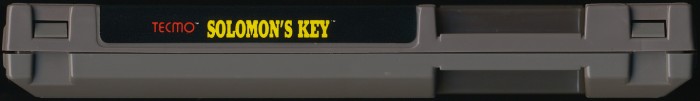

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-KE-EEC |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-CNROM-07 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9004 - 9004 (2) |
| Est First Run | January 1990 |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-KE-0 PRG | 32 KB | 3067E376 | 3 |
| CHR0 | NES-KE-0 CHR | 32 KB | FAD8A464 | 6 |
| N/A | ROMs Combined | 64 KB | 75C3E7D4 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP23256E 2870 | Mask ROM 32 KB | DIP-28 | 0A3 12 | 9003 | |
| U2 CHR | Ricoh | RP23256E 2011 | Mask ROM 32 KB | DIP-28 | 0A3 12 | 9003 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9004 A | 9004 | |
| U4 HC161 | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 944 EN | 8944 |
