Release Info
| Catalog ID | NES-N6-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | June 1991 |
| Publisher | Nexoft |
| Developer | Game Arts |
| Players | 1 |
| Peripherals | NES Controller |

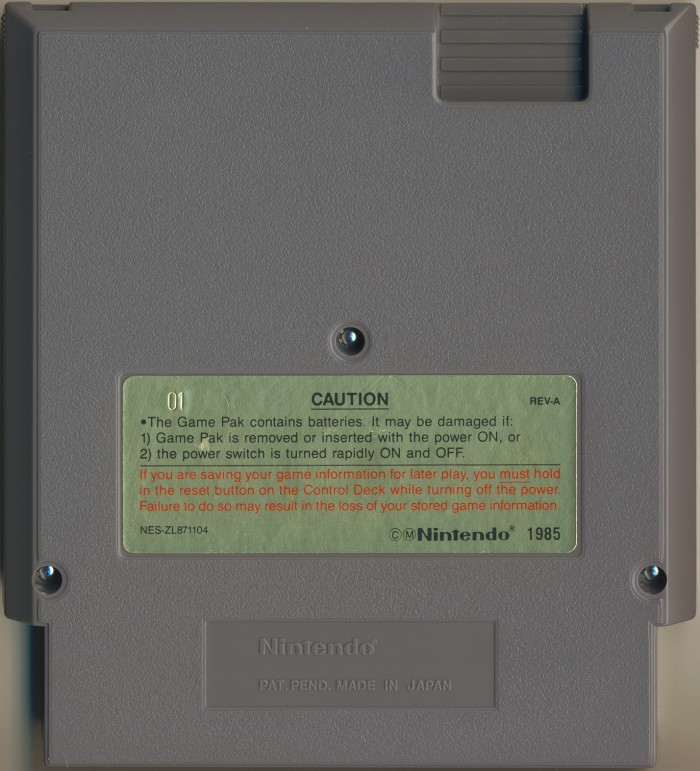

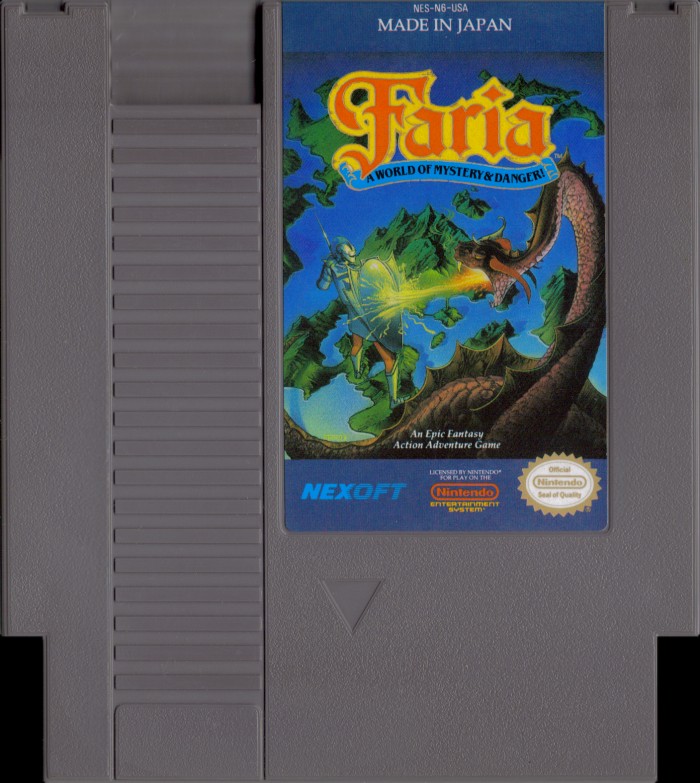

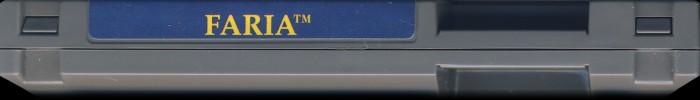

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-N6-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 08 |

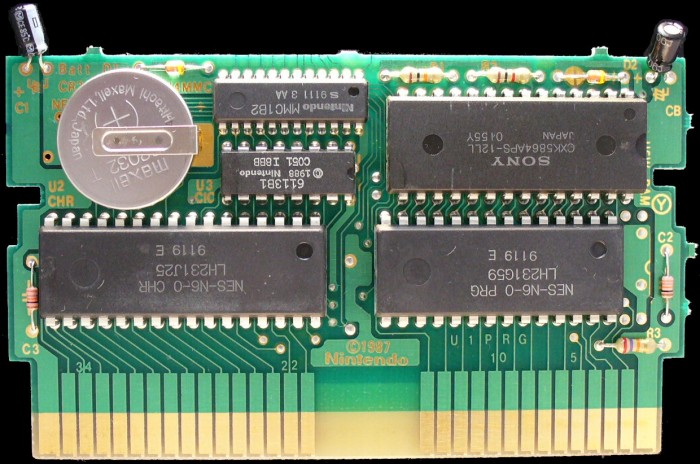

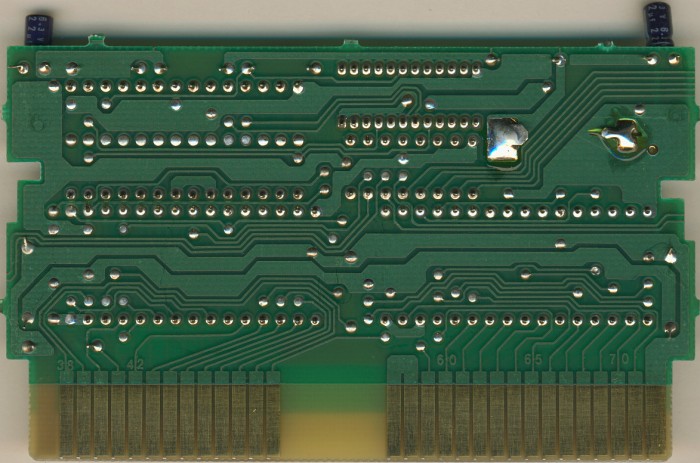

PCB Properties
| Name | NES-SKROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9119 |
| Est First Run | May 1991 |
| PCB Class | NES-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-N6-0 PRG | 128 KB | 20B04883 | 1 |
| CHR0 | NES-N6-0 CHR | 128 KB | 819C23FA | 1 |
| N/A | ROMs Combined | 256 KB | 45F03D2E | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G 59 | Mask ROM 128 KB | DIP-28 | 9119 E | 9119 | |
| U2 CHR | Sharp | LH231J 25 | Mask ROM 128 KB | DIP-32 | 9119 E | 9119 | |
| U3 CIC | LSI Logic | 6113B1 | Nintendo CIC | DIP-16 | 051 C | 9051 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9111 3 AA | 9111 | |
| U5 W-RAM | Sony | CXK5864APS-12LL | SRAM 8 KB | DIP-28 | 0I 55Y | 9035 |
