Release Info
| Catalog ID | SUN-FZII-5500 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 20, 1988 |
| Publisher | Sunsoft |
| Developer | Sega |
| Players | 1 |
| Peripherals | Famicom Controller |

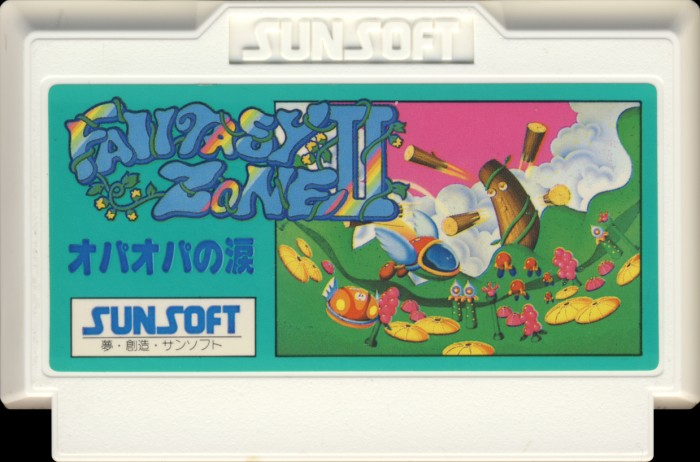

Cart Properties
| Cart Producer | Sunsoft |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

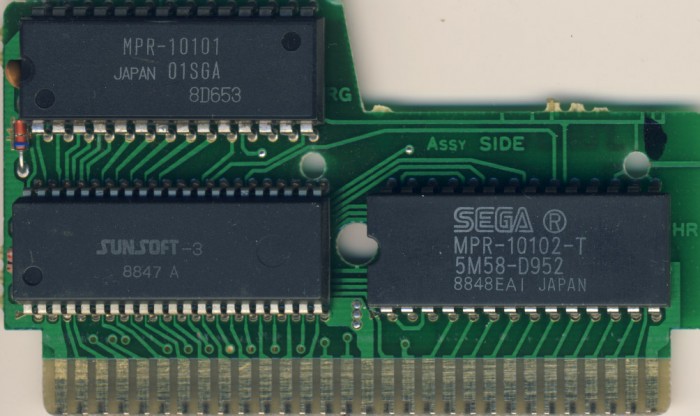

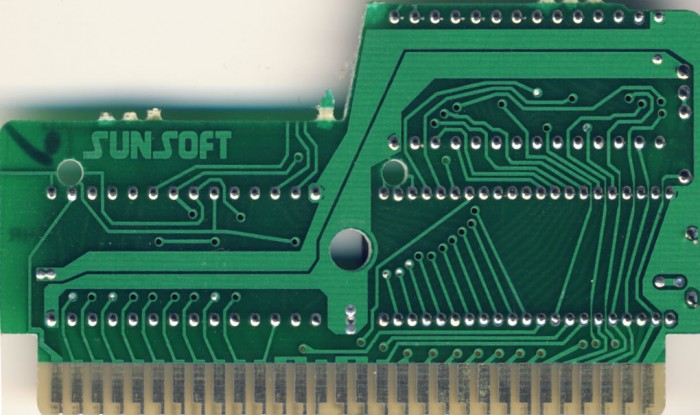

PCB Properties
| Name | UNK-SUNSOFT-FZII |
|---|---|
| PCB Producer | Sunsoft |
| Manufacturer | Not Specified |
| Mfg Range | 8847 - 8850 (2) |
| Est First Run | November 1988 |
| PCB Class | SUNSOFT-3 |
| iNES Mapper | 67 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | Sunsoft-3 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | MPR-10101 | 128 KB | 7F2A04BF | 2 |
| CHR0 | MPR-10102-T | 128 KB | 4B593A27 | 2 |
| N/A | ROMs Combined | 256 KB | 0C5A6297 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Panasonic | 01 MN2310 | Mask ROM 128 KB | DIP-28 | 8D6 53 | 8850 | |
| CHR | Toshiba | 5M58 D952 | Mask ROM 128 KB | DIP-28 | 8848 EAI | 8848 | |
| Sharp | SUNSOFT-3 | Sunsoft-3 | DIP-42 | 8847 A | 8847 |
