Release Info
| Catalog ID | HSS-FA |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | July 21, 1989 |
| Publisher | Hi-Score Software |
| Developer | Game Arts |
| Players | 1 |
| Peripherals | Famicom Controller |

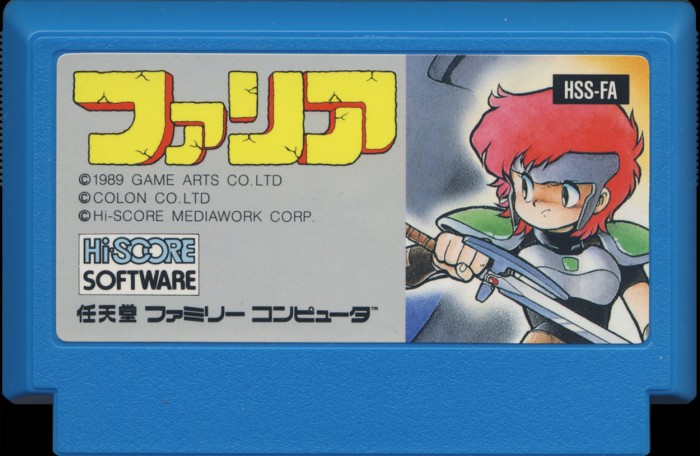

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Ocean Blue |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HSS-FA |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

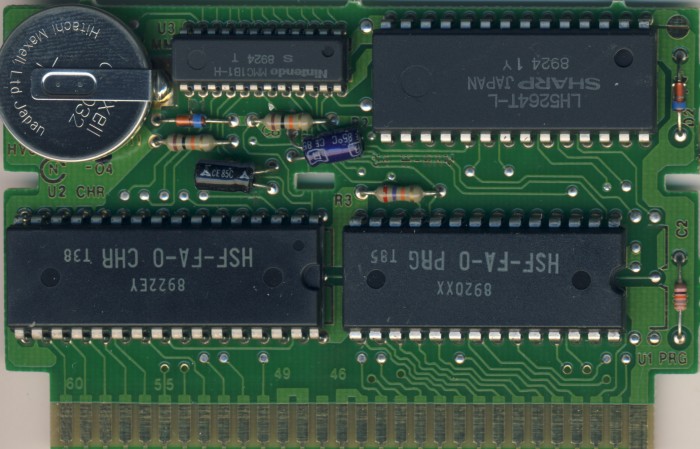

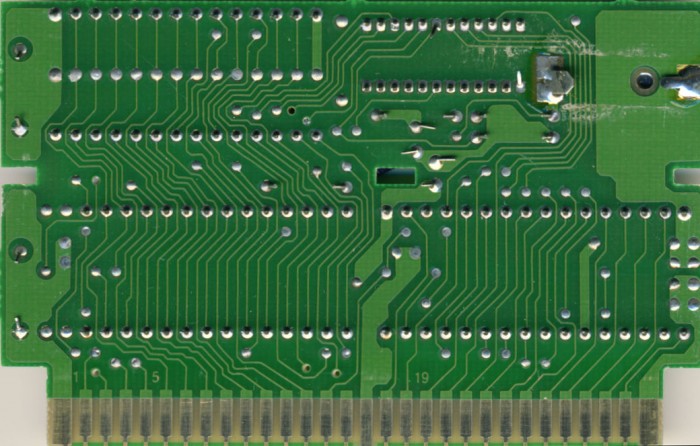

PCB Properties
| Name | HVC-SKROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8924 |
| Est First Run | June 1989 |
| PCB Class | HVC-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B1-H |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HSF-FA-0 PRG | 128 KB | BF5E2513 | 1 |
| CHR0 | HSF-FA-0 CHR | 128 KB | 491385CC | 1 |
| N/A | ROMs Combined | 256 KB | F885D931 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8920 XX | 8920 | |
| U2 CHR | NEC | UPD23C1013 | Mask ROM 128 KB | DIP-32 | 8922 EY | 8922 | |
| U3 MMC1 | Sharp | MMC1B1-H | Nintendo MMC1 | DIP-24 | 8924 T | 8924 | |
| U4 W-RAM | Sharp | LH5264T-L | SRAM 8 KB | DIP-28 | 8924 1 Y | 8924 |
