Release Info
| Catalog ID | AVE-PZ |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1990 |
| Publisher | AVE |
| Developer | Idea-Tek |
| Players | 1 |
| Peripherals | NES Controller |

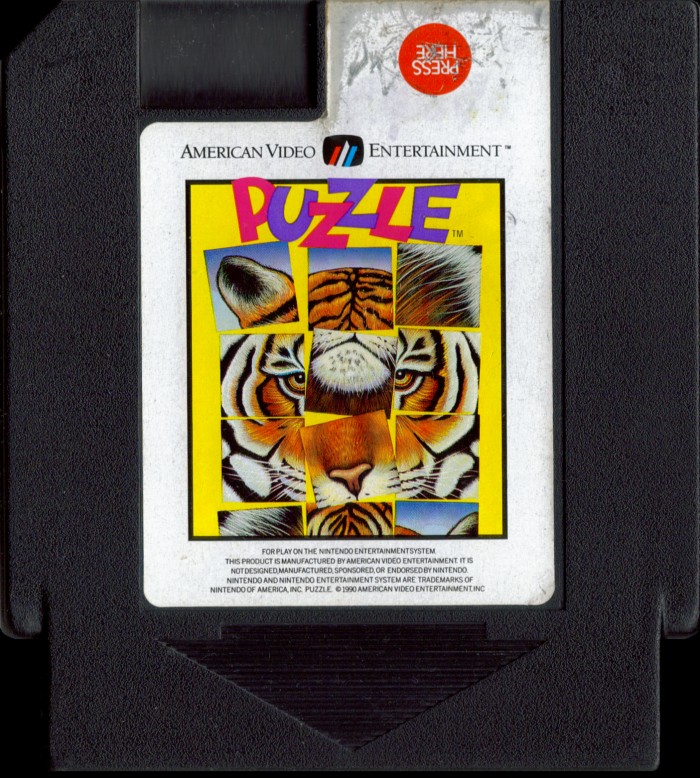

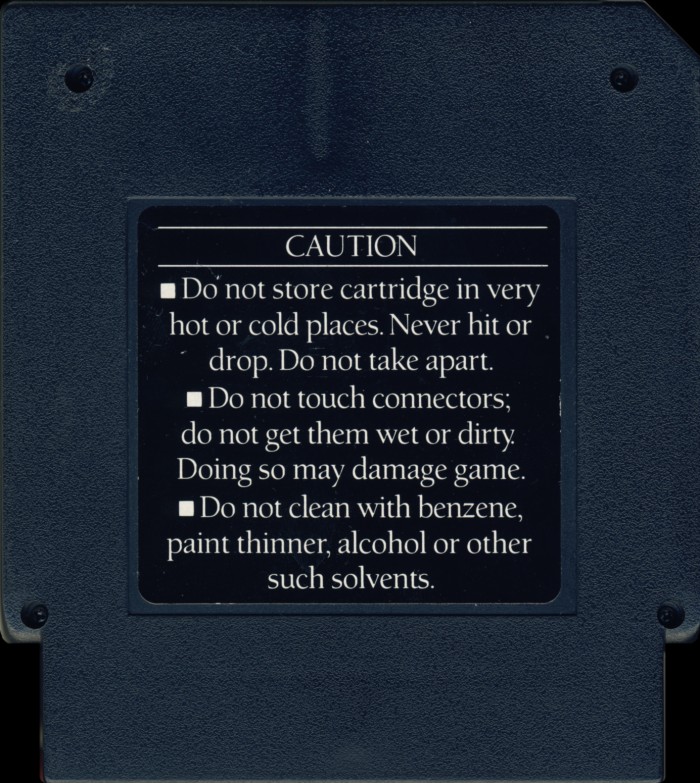

Cart Properties
| Cart Producer | AVE |
|---|---|
| Color | Black |
| Form Factor | Cut Corner |
| Embossed Text | None |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

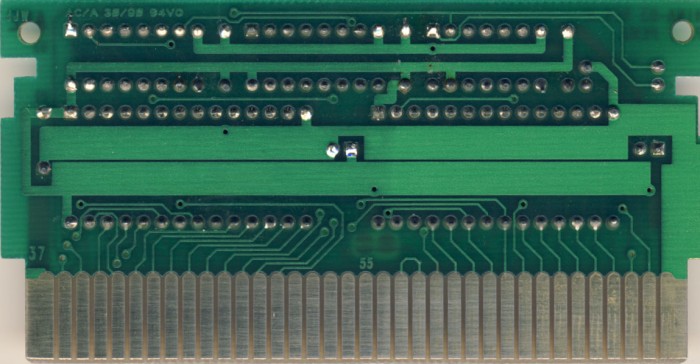

PCB Properties
| Name | NINA-03 REV. A |
|---|---|
| PCB Producer | AVE |
| Manufacturer | ACL |
| Mfg Range | 9036 |
| Est First Run | September 1990 |
| PCB Class | AVE-NINA-03 |
| iNES Mapper | 79 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | MX8018 |
| Hardware | 74xx138, 74xx175 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 32 KB | 0C871B42 | 1 |
| CHR0 | Not Present | 32 KB | 65825E30 | 1 |
| N/A | ROMs Combined | 64 KB | EA19080A | 1 |

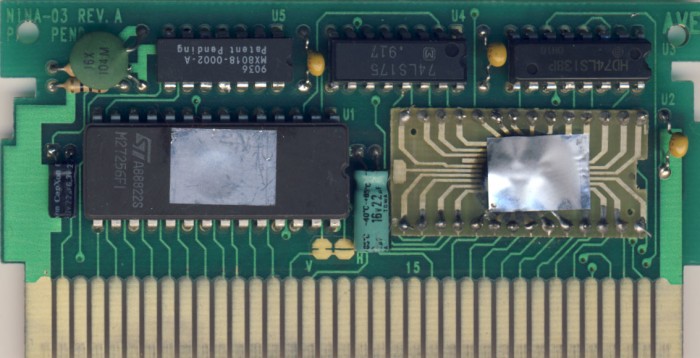

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | ST Micro | M27256-2F1 | UV EPROM 32 KB | DIP-28 | 8822 A8 | 8822 | |
| U2 | __Unknown | EP256 | Bonded ROM 32 KB | EPOXY | |||
| U3 | Hitachi | HD74LS138P | 74-138 Series | DIP-16 | 0H1 6 | 9032 | |
| U4 | Matsushita | 74LS175 | 74-175 Series | DIP-16 | .917 | 8903 | |
| U5 | Macronix | MX8018-0002-A | AVE CIC | DIP-14 | 9036 | 9036 |
