Release Info
| Catalog ID | SAC-1P |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | February 28, 1992 |
| Publisher | Sammy |
| Developer | Sammy |
| Players | 2 |
| Peripherals | Famicom Controller |

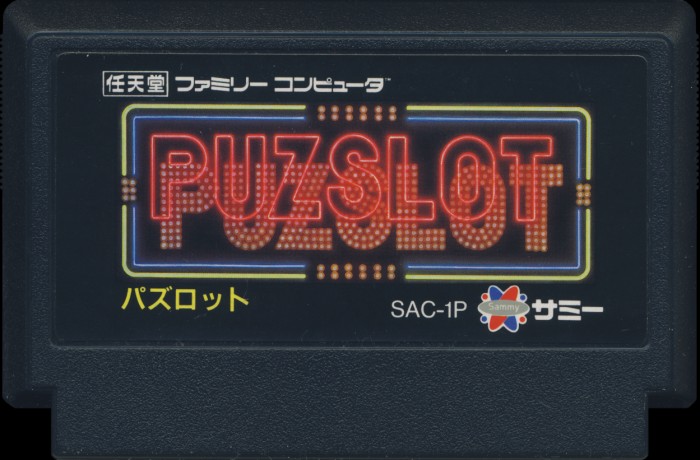

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | SAC-1P |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

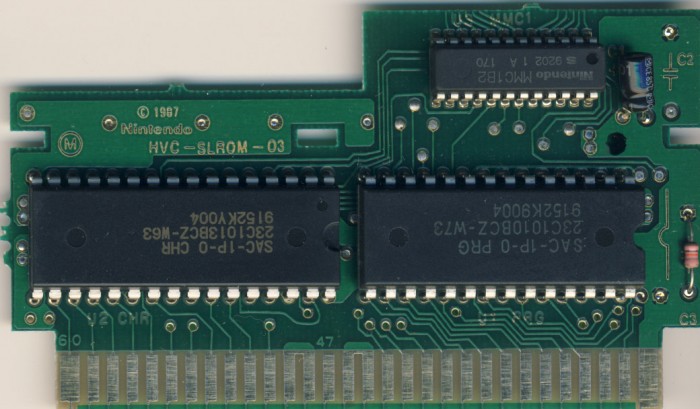

PCB Properties
| Name | HVC-SLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9202 |
| Est First Run | January 1992 |
| PCB Class | HVC-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SAC-1P-0 PRG | 128 KB | 6611497F | 1 |
| CHR0 | SAC-1P-0 CHR | 128 KB | C74B723B | 1 |
| N/A | ROMs Combined | 256 KB | F4DD5BA5 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | 23C1010BCZ W73 | Mask ROM 128 KB | DIP-28 | 9152 K9004 | 9152 | |
| U2 CHR | NEC | 23C1010BCZ W63 | Mask ROM 128 KB | DIP-28 | 9152 KY004 | 9152 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9202 1 A 170 | 9202 |
