Release Info
| Catalog ID | WT-BC-6 |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed » Multi-cart |
| Release Date | 1991 |
| Publisher | Wisdom Tree |
| Developer | Wisdom Tree |
| Players | 1 |
| Peripherals | NES Controller |

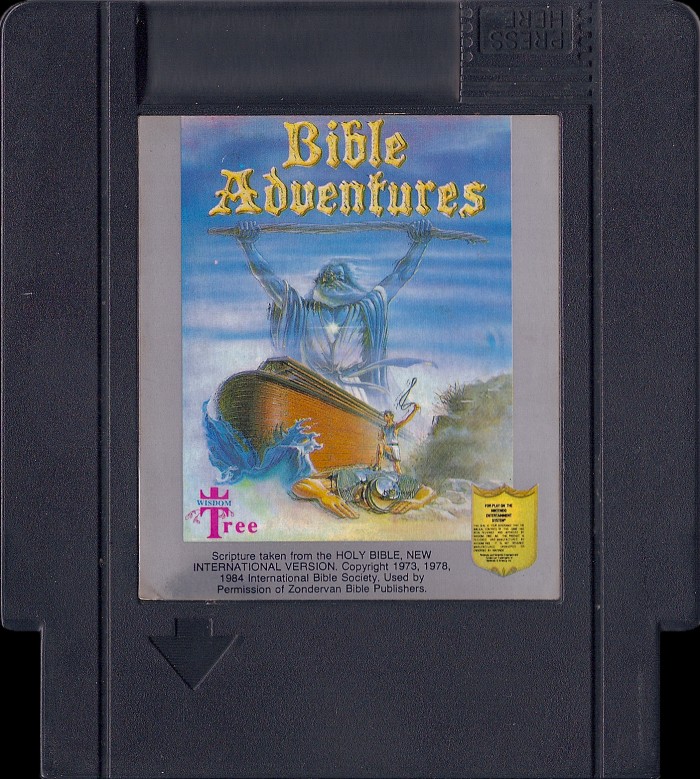

Cart Properties
| Cart Producer | Color Dreams |
|---|---|
| Color | Black |
| Form Factor | Inset Grip |

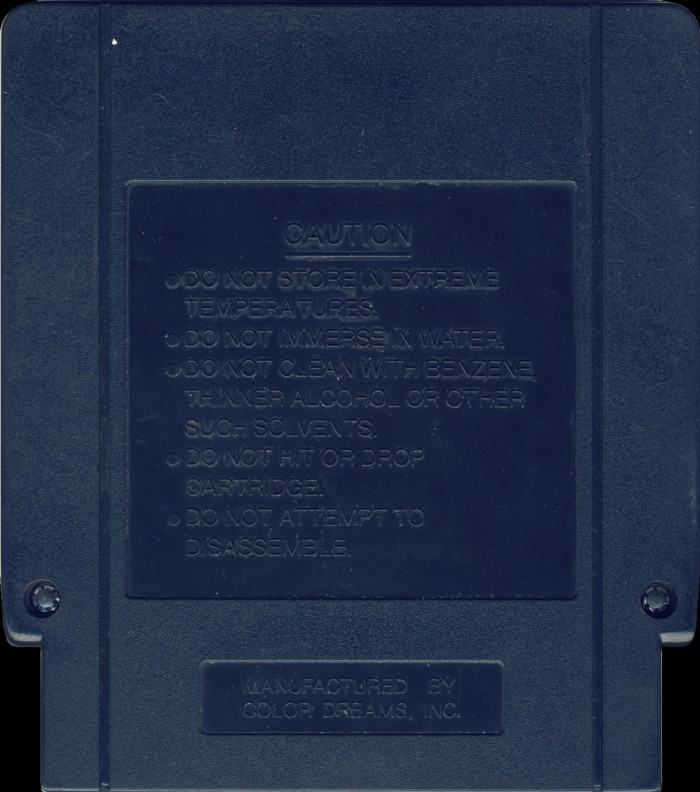

| Embossed Text | Manufactured by Color Dreams, Inc. |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

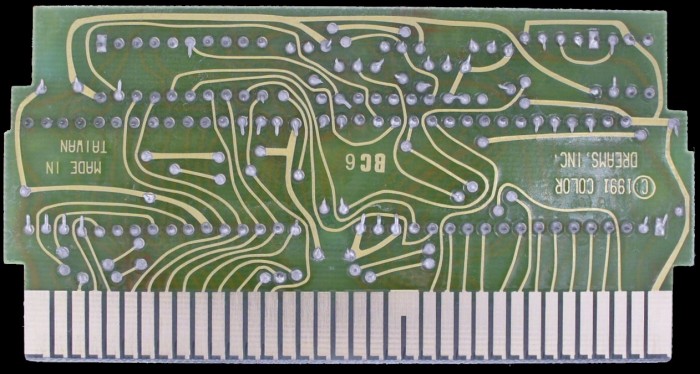

PCB Properties
| Name | BC6 |
|---|---|
| PCB Producer | Color Dreams |
| Manufacturer | BTC |
| Mfg Range | 9018 - 9407 (4) |
| Est First Run | May 1990 |
| PCB Class | COLORDREAMS-74*377 |
| iNES Mapper | 11 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 7660 |
| Hardware | 74xx377 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | D-ADVENTURES PRG 512 14 | 64 KB | E571615D | 1 |
| CHR0 | D-ADVENTURES VID 512 14 | 64 KB | 1C05428A | 1 |
| N/A | ROMs Combined | 128 KB | 680DA78D | 1 |

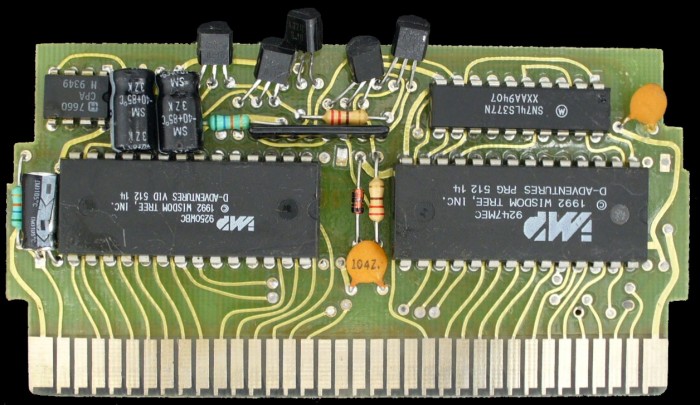

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IMP | IM23512 | Mask ROM 64 KB | DIP-28 | 9247 MEC | 9247 | ||
| IMP | IM23512 | Mask ROM 64 KB | DIP-28 | 9250 WBC | 9250 | ||
| Motorola | SN74LS377N | 74-377 Series | DIP-20 | 9407 XXAA | 9407 | ||
| Harris | 7660CPA | 7660 DC Charge Pump | DIP-8 | 9349 H | 9349 |
