Release Info
| Catalog ID | WT-BB-6 |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1993 |
| Publisher | Wisdom Tree |
| Developer | Wisdom Tree |
| Players | 4 |
| Peripherals | NES Controller |

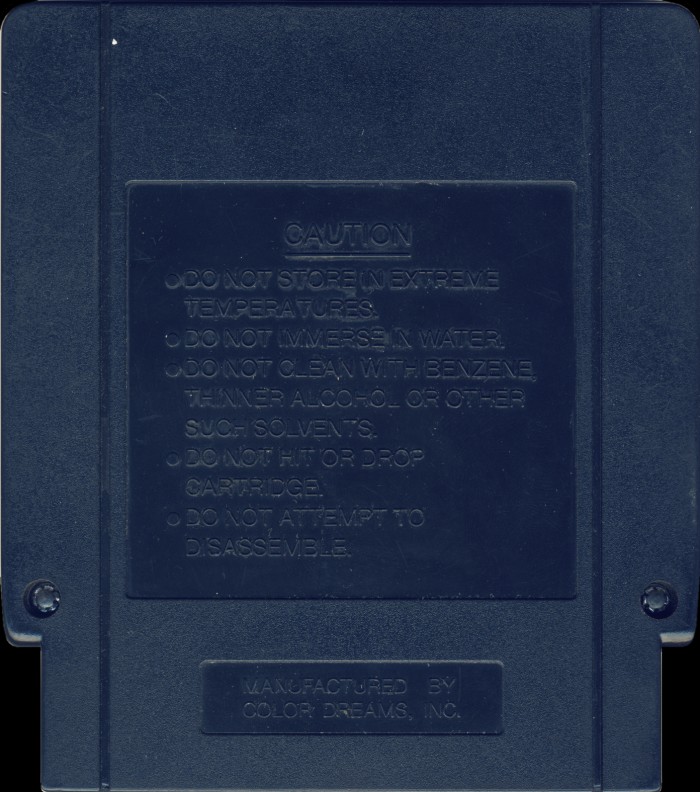

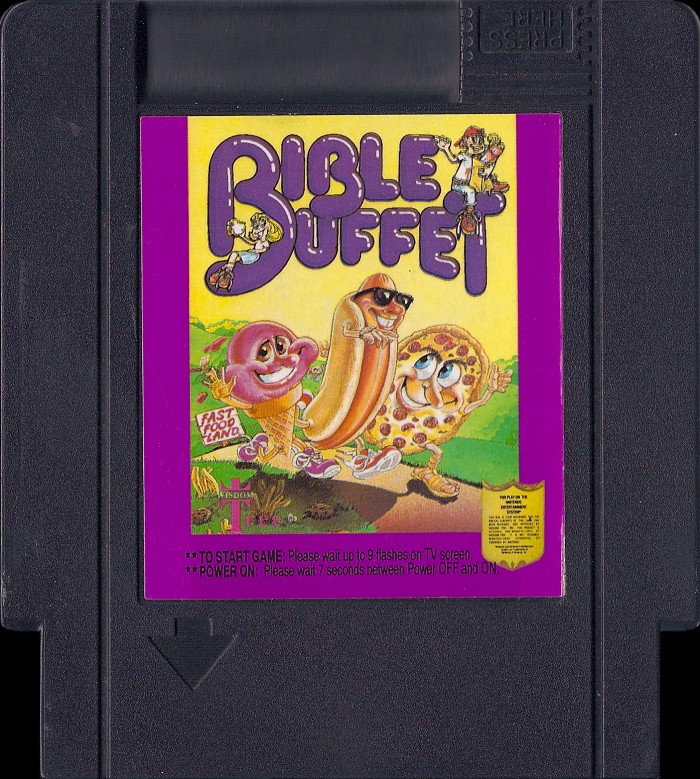

Cart Properties
| Cart Producer | Color Dreams |
|---|---|
| Color | Black |
| Form Factor | Inset Grip |
| Embossed Text | Manufactured by Color Dreams, Inc. |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

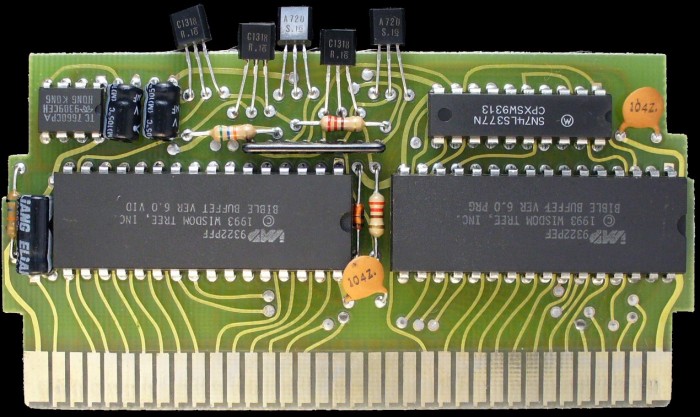

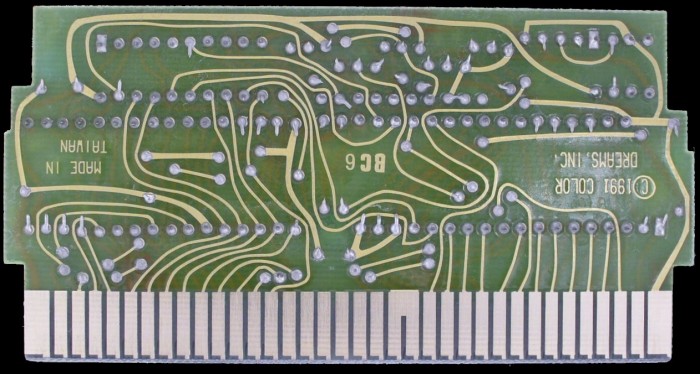

PCB Properties
| Name | BC6 |
|---|---|
| PCB Producer | Color Dreams |
| Manufacturer | BTC |
| Mfg Range | 9322 - 9402 (2) |
| Est First Run | June 1993 |
| PCB Class | COLORDREAMS-74*377 |
| iNES Mapper | 11 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 7660 |
| Hardware | 74xx377 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BIBLE BUFFET VER 6.0 PRG | 128 KB | A8A4A48B | 2 |
| CHR0 | BIBLE BUFFET VER 6.0 VID | 128 KB | FC048AF2 | 2 |
| N/A | ROMs Combined | 256 KB | CFD5AC62 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IMP | IM231003 | Mask ROM 128 KB | DIP-32 | 9322 PEF | 9322 | ||
| IMP | IM231003 | Mask ROM 128 KB | DIP-32 | 9322 PFF | 9322 | ||
| Motorola | SN74LS377N | 74-377 Series | DIP-20 | 9313 CPXSW | 9313 | ||
| Teledyne | TC7660CPA | 7660 DC Charge Pump | DIP-8 | 9309 CEH | 9309 |
