Release Info
| Catalog ID | NES-MS-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | October 1986 |
| Publisher | Bandai |
| Developer | TOSE Software |
| Players | 2 |
| Peripherals | NES Controller |

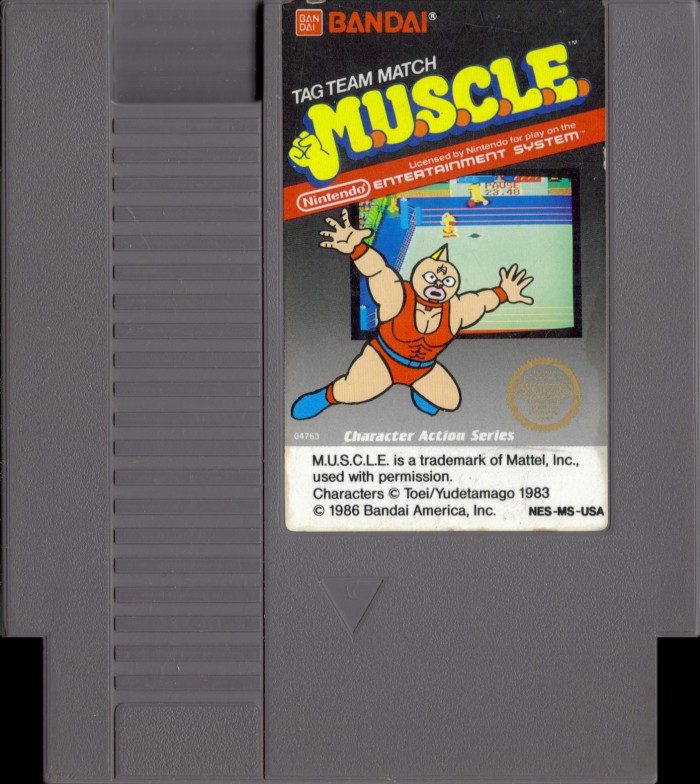

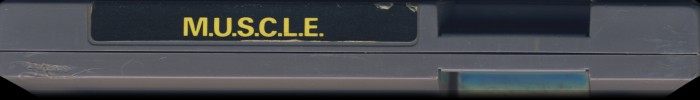

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 5-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-MS-USA |
| Seal of Quality | Round |
| MfgString Present | No |
| 2-digit Code | 07 |

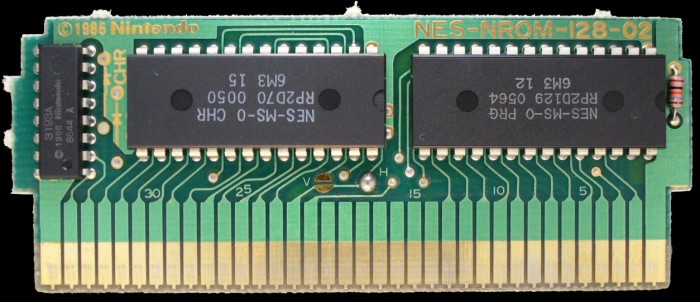

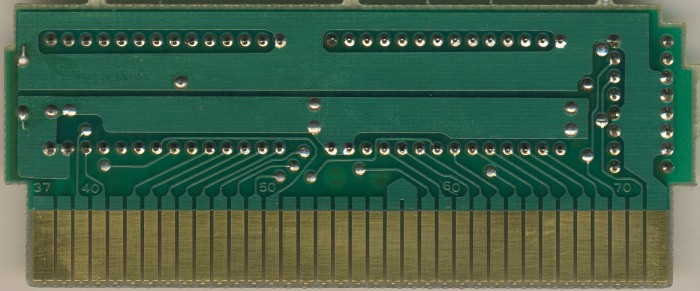

PCB Properties
| Name | NES-NROM-128-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8651 |
| Est First Run | December 1986 |
| PCB Class | NES-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3193A |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-MS-0 PRG | 16 KB | 092B5371 | 1 |
| CHR0 | NES-MS-0 CHR | 8 KB | 01623DFD | 1 |
| N/A | ROMs Combined | 24 KB | 8FF31896 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Ricoh | RP2D129 0564 | Mask ROM 16 KB | DIP-28 | 6M3 12 | 8651 | |
| CHR | Ricoh | RP2D70 0050 | Mask ROM 8 KB | DIP-28 | 6M3 15 | 8651 | |
| CIC | Sharp | 3193A | Nintendo CIC | DIP-16 | 8644 A | 8644 |
