Release Info
| Catalog ID | NES-L6-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | September 1990 |
| Publisher | Mindscape |
| Developer | Ozark Softscape |
| Players | 4 |
| Peripherals | NES Controller,4-Player Adapter |

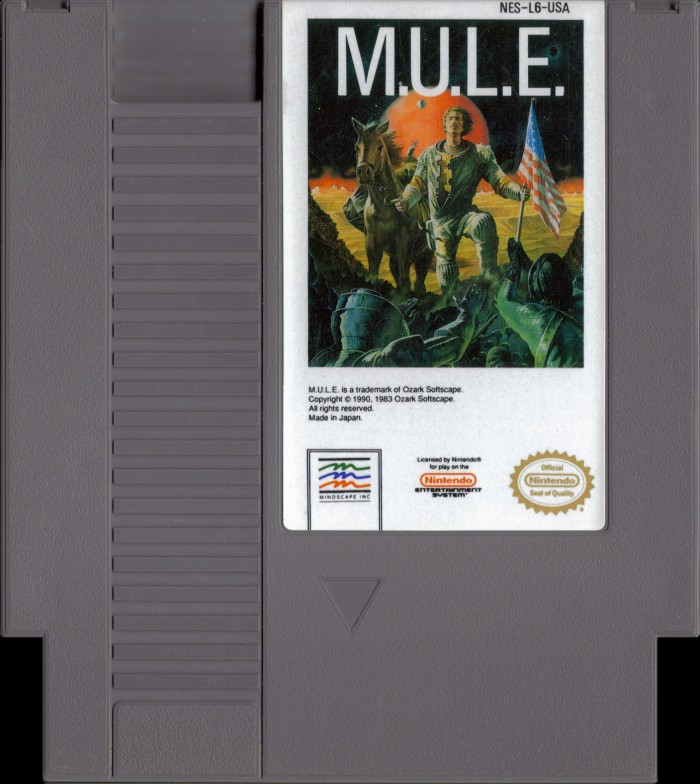

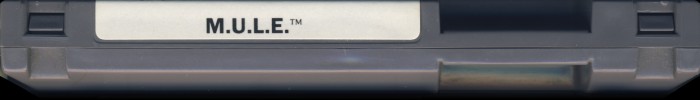

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-L6-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 01 |
PCB Properties
| Name | NES-SNROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9032 |
| Est First Run | August 1990 |
| PCB Class | NES-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-L6-0 PRG | 128 KB | 0939852F | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Toshiba | TC531002CP J519 | Mask ROM 128 KB | DIP-28 | 9031 EAI | 9031 | |
| U2 CHR RAM | Sony | CXK5864APS-12LL | SRAM 8 KB | DIP-28 | 0H 02Y | 9031 | |
| U3 CIC | LSI Logic | 6113B1 | Nintendo CIC | DIP-16 | 032 C | 9032 | |
| U4 MMC1 | NEC | MMC1B2 | Nintendo MMC1 | DIP-24 | 9016 B3039 | 9016 | |
| U5 W-RAM | Sony | CXK5864APS-12LL | SRAM 8 KB | DIP-28 | 0F 18Y | 9022 |
