Release Info
| Catalog ID | NES-8G-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | June 1991 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | NES Controller |
Cart Properties

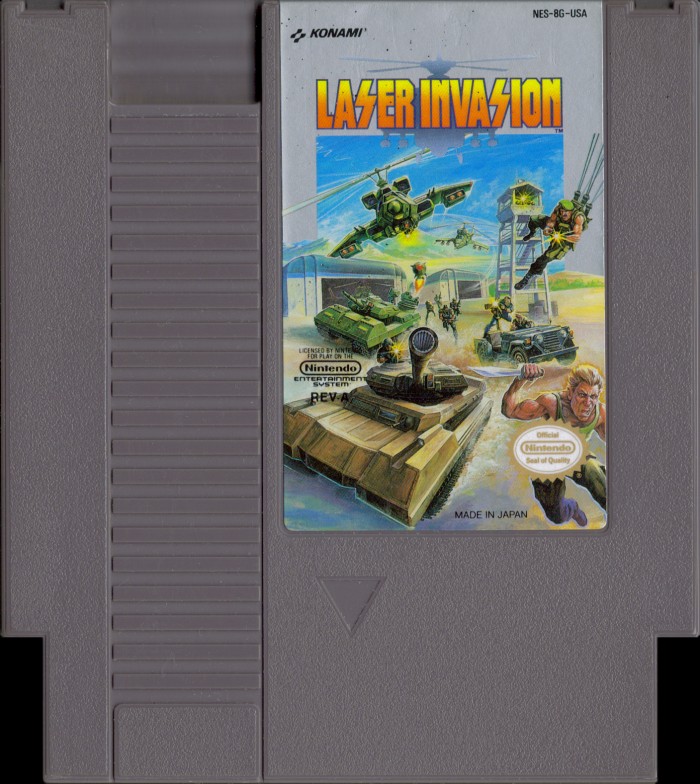

| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-8G-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

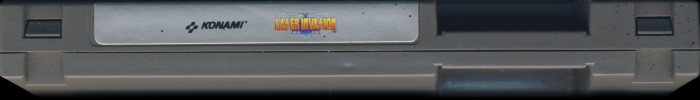

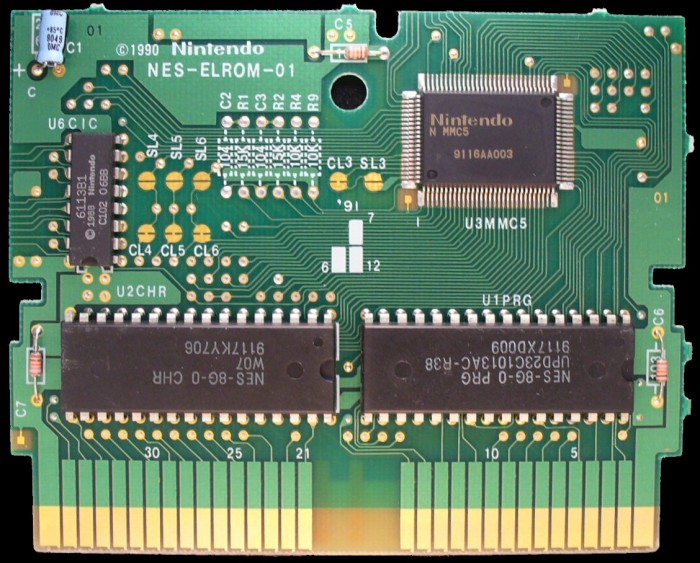

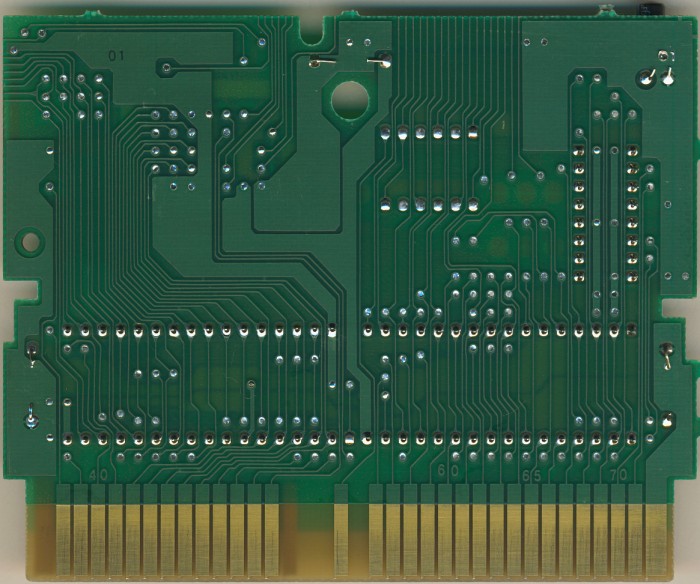

PCB Properties
| Name | NES-ELROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9117 |
| Est First Run | April 1991 |
| PCB Class | NES-ELROM |
| iNES Mapper | 5 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC5 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-8G-0 PRG | 128 KB | 51D2112F | 1 |
| CHR0 | NES-8G-0 CHR | 128 KB | 04BBFA6E | 1 |
| N/A | ROMs Combined | 256 KB | B0480AE9 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1013AC R38 | Mask ROM 128 KB | DIP-32 | 9117 XD009 | 9117 | |
| U2 CHR | NEC | UPD23C1013 | Mask ROM 128 KB | DIP-32 | 9117 KY706 | 9117 | |
| U3 MMC5 | NEC | MMC5 | Nintendo MMC5 | PQFP-100 | 9116 AA003 | 9116 | |
| U6 CIC | LSI Logic | 6113B1 | Nintendo CIC | DIP-16 | 102 C | 9102 |
