Release Info
| Catalog ID | NES-5V-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | September 1991 |
| Publisher | Acclaim |
| Developer | Williams Entertainment |
| Players | 2 |
| Peripherals | NES Controller,4-Player Adapter |

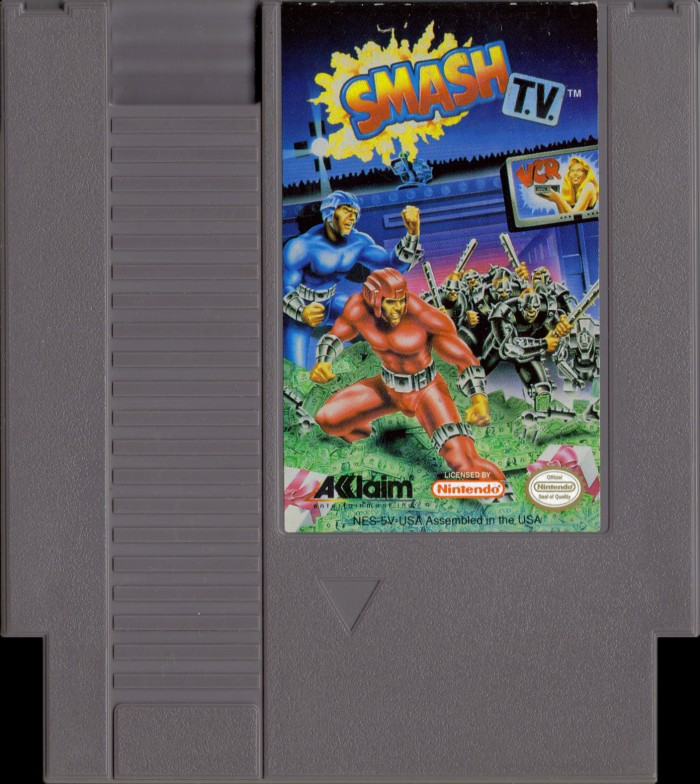

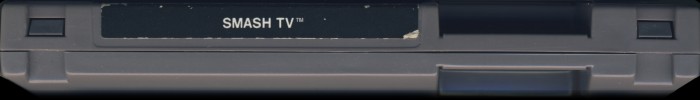

Cart Properties
| Cart Producer | Acclaim |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-5V-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code |

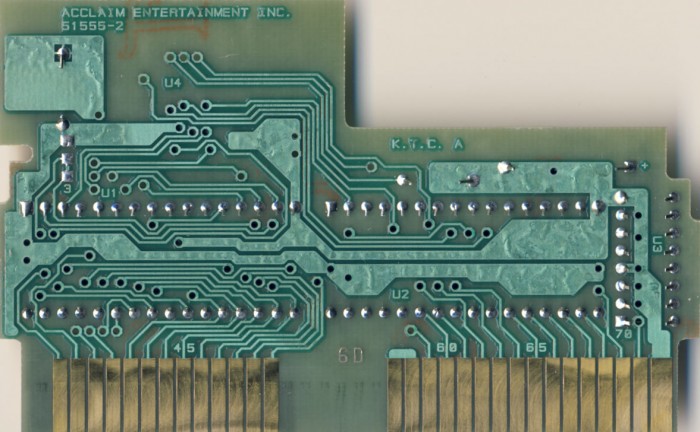

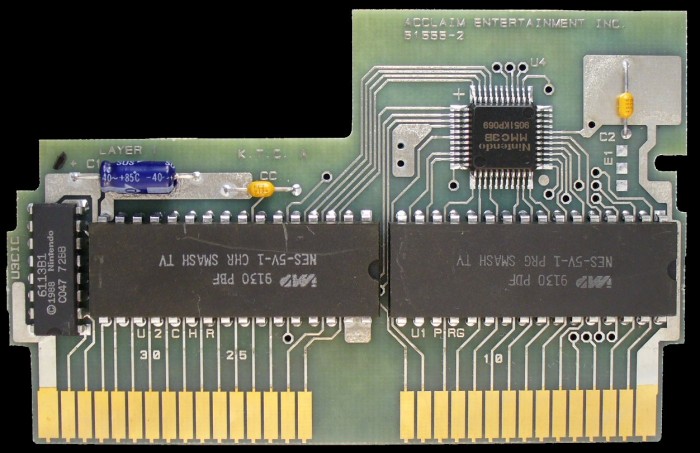

PCB Properties
| Name | 51555-2 |
|---|---|
| PCB Producer | Acclaim |
| Manufacturer | Key Tronic |
| Mfg Range | 9130 |
| Est First Run | July 1991 |
| PCB Class | ACCLAIM-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-5V-1 PRG SMASH TV | 128 KB | 2989EAD6 | 2 |
| CHR0 | NES-5V-1 CHR SMASH TV | 128 KB | 6FAE4C9D | 3 |
| N/A | ROMs Combined | 256 KB | 6EE94D32 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | IMP | IM231003 | Mask ROM 128 KB | DIP-32 | 9130 PDF | 9130 | |
| U2 CHR | IMP | IM231003 | Mask ROM 128 KB | DIP-32 | 9130 PBF | 9130 | |
| U3 CIC | LSI Logic | 6113B1 | Nintendo CIC | DIP-16 | 047 C | 9047 | |
| U4 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9051 KP069 | 9051 |
