Release Info
| Catalog ID | NES-RJ-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed |
| Release Date | April 6, 1992 |
| Publisher | Nintendo |
| Developer | Rare |
| Players | 2 |
| Peripherals | NES Controller |

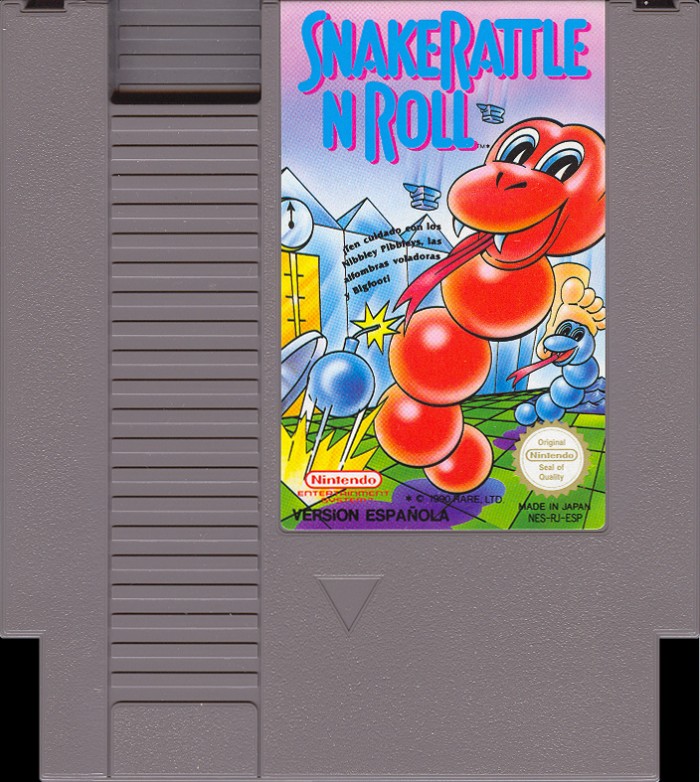

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-RJ-ESP |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 20 |

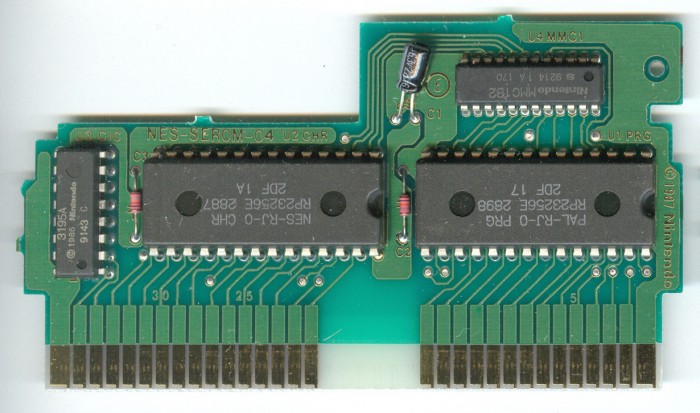

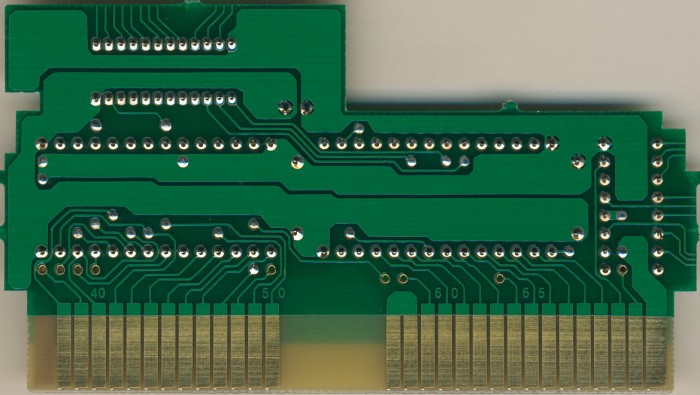

PCB Properties
| Name | NES-SEROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9215 |
| Est First Run | April 1992 |
| PCB Class | NES-SEROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-RJ-0 PRG | 32 KB | 533F5707 | 4 |
| CHR0 | NES-RJ-0 CHR | 32 KB | ADD26ABB | 5 |
| N/A | ROMs Combined | 64 KB | 3824F7A5 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP23256E 2898 | Mask ROM 32 KB | DIP-28 | 2DF 17 | 9215 | |
| U2 CHR | Ricoh | RP23256E 2887 | Mask ROM 32 KB | DIP-28 | 2DF 1A | 9215 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9143 C | 9143 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9214 1 A 170 | 9214 |
