Release Info
| Catalog ID | NES-DF-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | June 1989 |
| Publisher | Kemco |
| Developer | Kemco |
| Players | 2 |
| Peripherals | NES Controller |

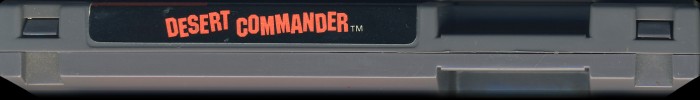

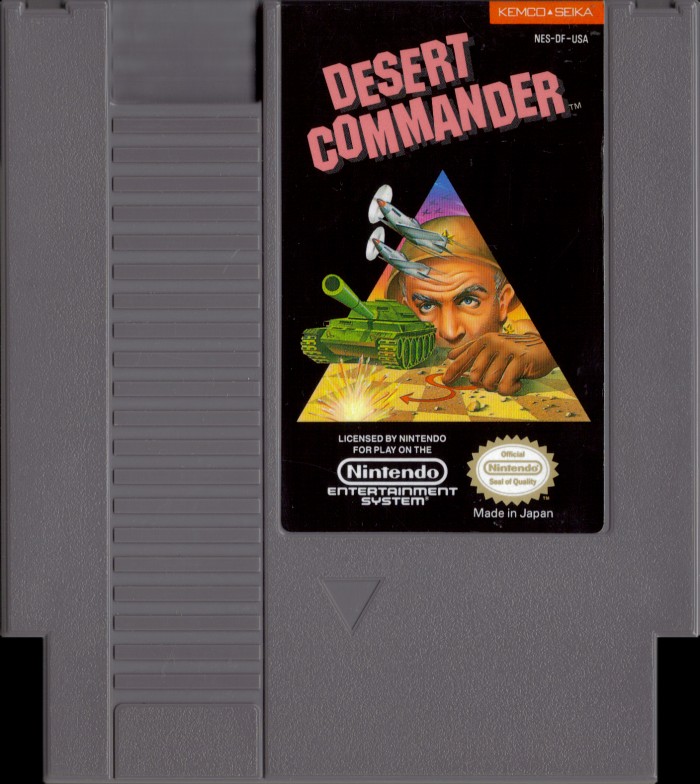

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-DF-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 00 |

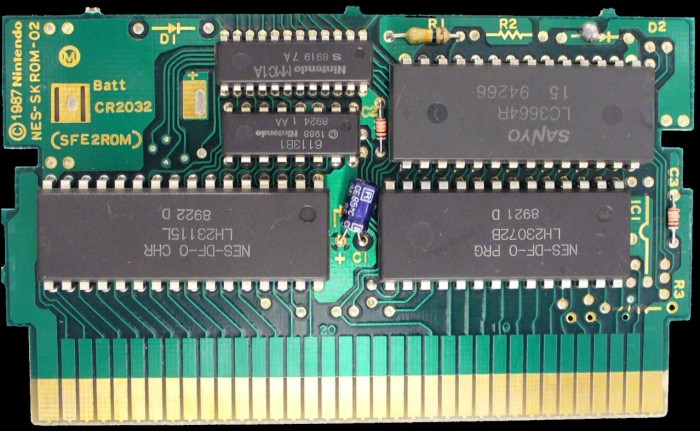

PCB Properties
| Name | NES-SKROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8924 |
| Est First Run | June 1989 |
| PCB Class | NES-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-DF-0 PRG | 128 KB | 54430B24 | 1 |
| CHR0 | NES-DF-0 CHR | 128 KB | F2AF687F | 1 |
| N/A | ROMs Combined | 256 KB | 68EC97CB | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 | Sharp | LH2307 2B | Mask ROM 128 KB | DIP-28 | 8921 D | 8921 | |
| IC2 | Sharp | LH2311 5L | Mask ROM 128 KB | DIP-32 | 8922 D | 8922 | |
| IC3 | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8924 1 AA | 8924 | |
| IC4 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8919 7 A | 8919 | |
| IC5 | Sanyo | LC3664R-15 | SRAM 8 KB | DIP-28 | 94 266 | 8913 |
