Release Info
| Catalog ID | HSP-47 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | August 29, 1992 |
| Publisher | ASCII |
| Developer | ASCII |
| Players | 1 |
| Peripherals | ,Famicom Controller |

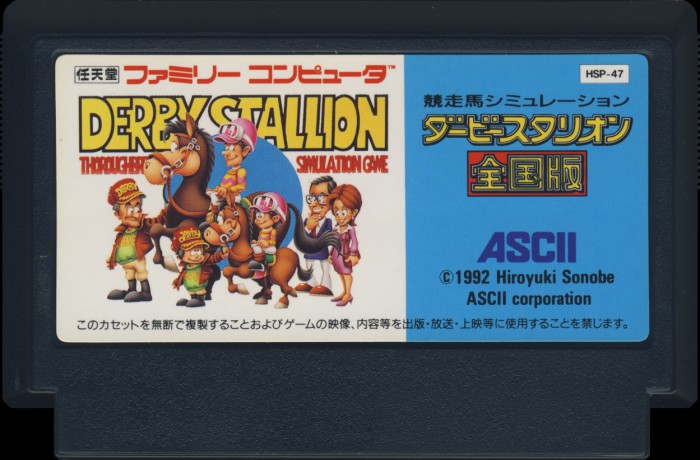

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HSP-47 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

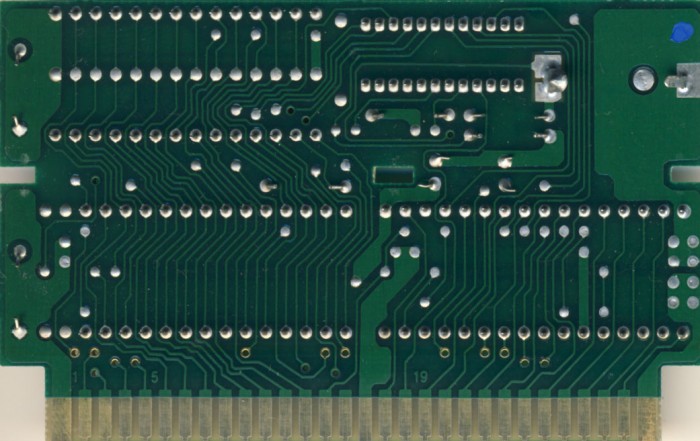

PCB Properties
| Name | HVC-SKROM-06 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9231 - 9319 (5) |
| Est First Run | August 1992 |
| PCB Class | HVC-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HSP-47-0 PRG | 128 KB | 0B0D4D1B | 5 |
| CHR0 | HSP-47-0 CHR | 128 KB | 2A2B450E | 5 |
| N/A | ROMs Combined | 256 KB | 8C4D59D6 | 5 |

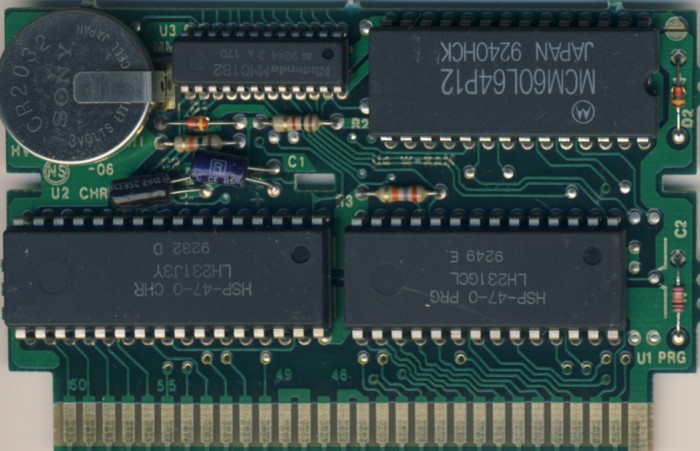

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G CL | Mask ROM 128 KB | DIP-28 | 9249 E | 9249 | |
| U2 CHR | Sharp | LH231J 3Y | Mask ROM 128 KB | DIP-32 | 9232 D | 9232 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9244 3 A 170 | 9244 | |
| U4 W-RAM | Motorola | MCM60L64P12 | SRAM 8 KB | DIP-28 | 9240 HCK | 9240 |
