Release Info
| Catalog ID | NES-AE-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | March 1989 |
| Publisher | Nintendo |
| Developer | Human Entertainment |
| Players | 1 |
| Peripherals | Power Pad |

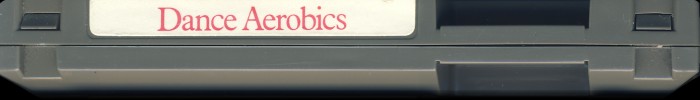

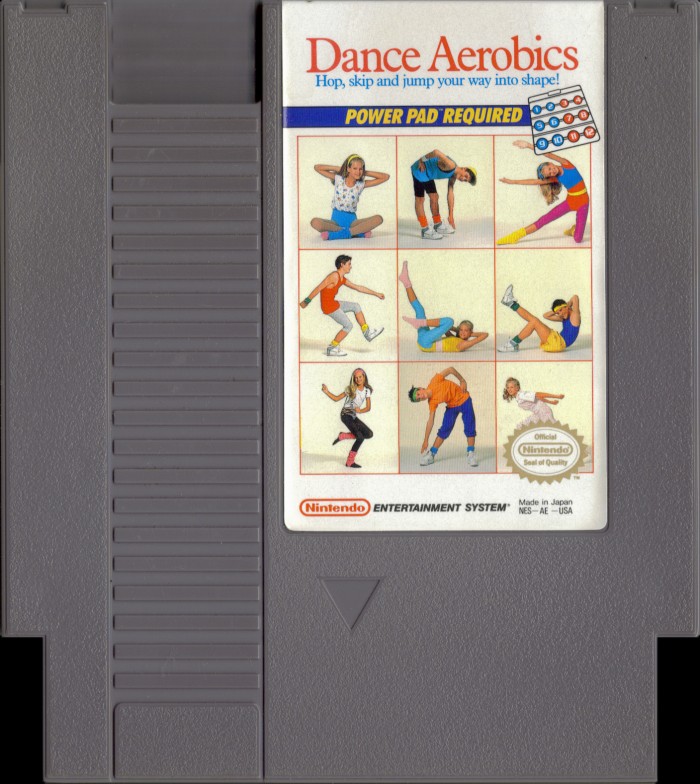

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-AE-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 00 |

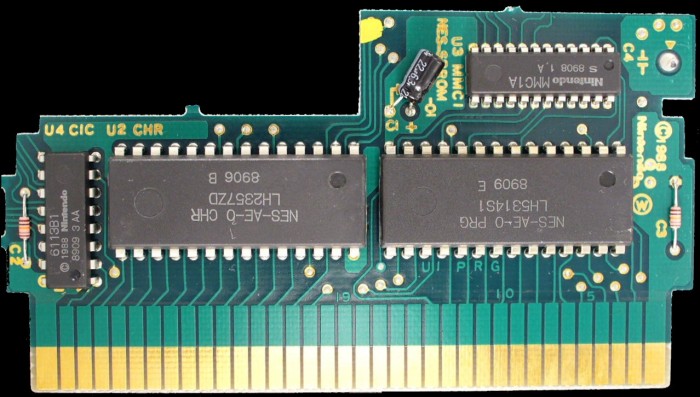

PCB Properties
| Name | NES-SBROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8909 |
| Est First Run | March 1989 |
| PCB Class | NES-SBROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-AE-0 PRG | 64 KB | D836A90B | 1 |
| CHR0 | NES-AE-0 CHR | 32 KB | F24084EF | 1 |
| N/A | ROMs Combined | 96 KB | 9E382EBF | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH5314 S1 | Mask ROM 64 KB | DIP-28 | 8909 E | 8909 | |
| U2 CHR | Sharp | LH2357 ZD | Mask ROM 32 KB | DIP-28 | 8906 B | 8906 | |
| U3 MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8908 1 A | 8908 | |
| U4 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8909 3 AA | 8909 |
