Release Info
| Catalog ID |
TFS-DV |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
December 5, 1986 |
| Publisher |
Toemiland |
| Developer |
T & E Soft |
| Players |
1 |
| Peripherals |
Famicom Controller |

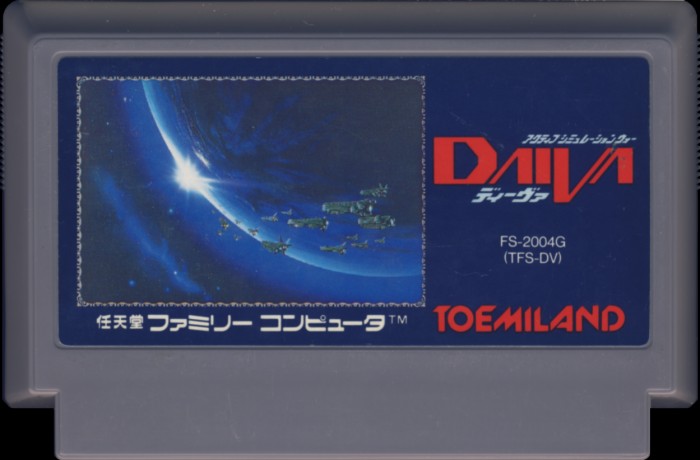

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Dark Grey |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
TFS-DV |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
00 |
PCB Properties
| Name |
HVC-UNROM-02 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
8644 |
| Est First Run |
November 1986 |
| PCB Class |
HVC-UNROM |
| iNES Mapper |
2 |
| Mirroring |
Vertical |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx161, 74xx32 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
TFS-DV-0 PRG |
128 KB |
721B5217 |
1 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| PRG ROM |
Toshiba |
TC531000BP
1618
|
Mask ROM
128 KB
|
DIP-28 |
8644
EBI
|
8644 |
|
| CHR RAM |
Toshiba |
TC5565APL-15
|
SRAM
8 KB
|
DIP-28 |
8641
HBK
|
8641 |
|
| LS161 |
Toshiba |
TC74HC161P
|
74-161 Series
|
DIP-16 |
8624
H
|
8624 |
|
| LS32 |
Toshiba |
TC74HC32P
|
74-32 Series
|
DIP-14 |
8642
H
|
8642 |
|
Additional Images
PCB Images
