Release Info
| Catalog ID | NES-BV-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | September 1989 |
| Publisher | Mattel |
| Developer | Beam Software |
| Players | 2 |
| Peripherals | NES Controller,Power Glove |

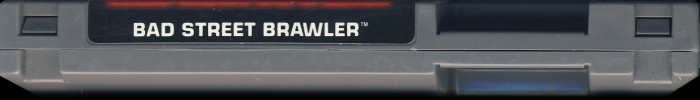

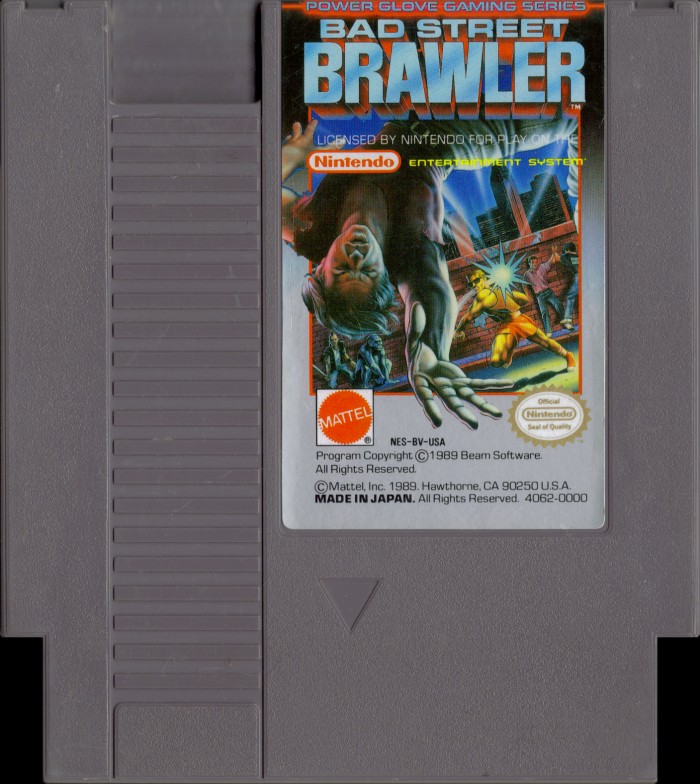

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-BV-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-SGROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8949 |
| Est First Run | December 1989 |
| PCB Class | NES-SGROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-BV-0 PRG | 128 KB | 1AE7B933 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2307 9B | Mask ROM 128 KB | DIP-28 | 8943 D | 8943 | |
| U2 CHR RAM | Sharp | LH5164D-10L | SRAM 8 KB | DIP-28 | 8942 5 DB | 8942 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8944 1 AA | 8944 | |
| U4 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8949 5 CA | 8949 |
