Release Info
| Catalog ID | KAC-3F |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | May 25, 1990 |
| Publisher | KAC |
| Developer | Graphic Research |
| Players | 1 |
| Peripherals | Famicom Controller |

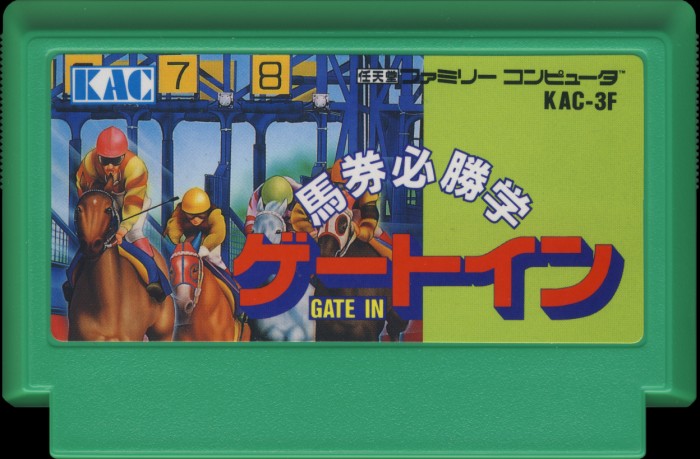

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Lime Green |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | KAC-3F |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |
PCB Properties
| Name | HVC-SGROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9023 |
| Est First Run | June 1990 |
| PCB Class | HVC-SGROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KAC-3F-0 PRG | 256 KB | 27C16011 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH5322 95 | Mask ROM 256 KB | DIP-32 | 9019 D | 9019 | |
| U2 CHR | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9013 MD | 9013 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9023 3 AA | 9023 |
