Release Info
| Catalog ID | NES-YD-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | April 1989 |
| Publisher | Taxan |
| Developer | Namco |
| Players | 1 |
| Peripherals | NES Controller |

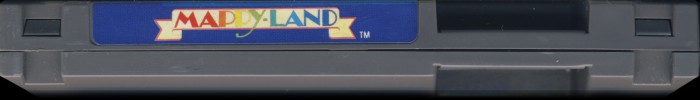

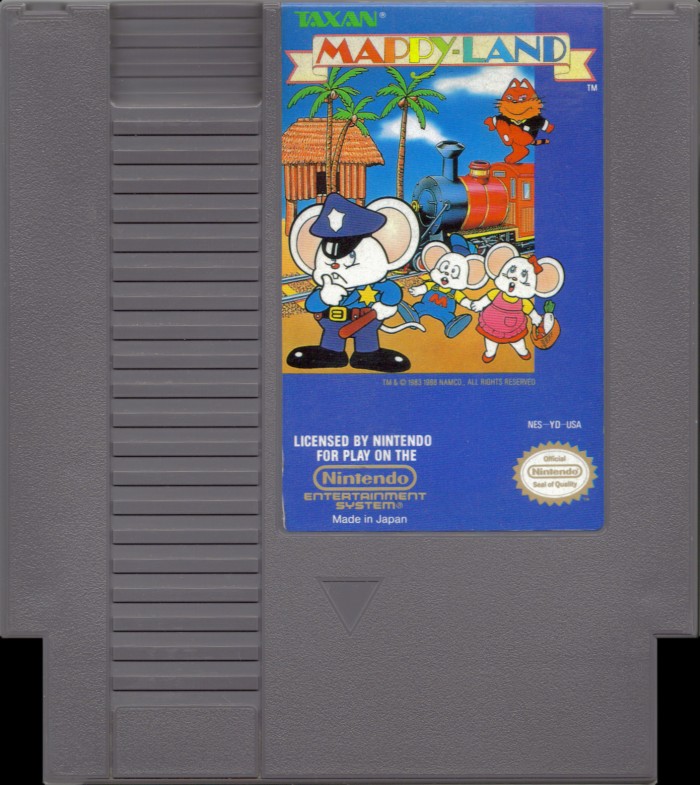

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-YD-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

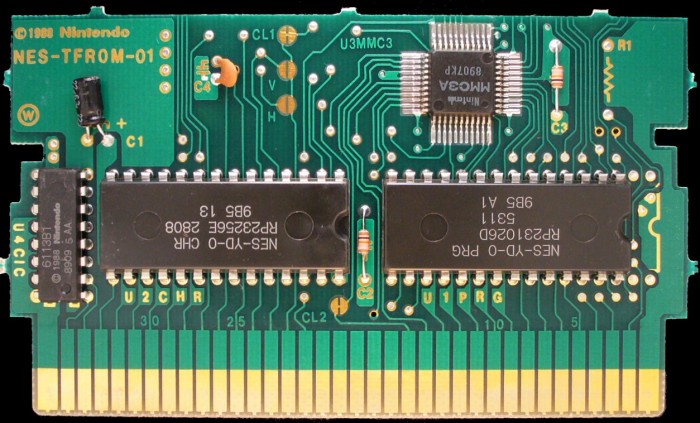

PCB Properties
| Name | NES-TFROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8910 |
| Est First Run | March 1989 |
| PCB Class | NES-TFROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-YD-0 PRG | 128 KB | 6D9BA342 | 1 |
| CHR0 | NES-YD-0 CHR | 32 KB | B01F4B06 | 1 |
| N/A | ROMs Combined | 160 KB | 83FC38F8 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5311 | Mask ROM 128 KB | DIP-28 | 9B5 A1 | 8910 | |
| U2 CHR | Ricoh | RP23256E 2808 | Mask ROM 32 KB | DIP-28 | 9B5 13 | 8910 | |
| U3 MMC3 | NEC | MMC3A | Nintendo MMC3 | TQFP-44 | 8907 KP | 8907 | |
| U4 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8909 5 AA | 8909 |
