Release Info
| Catalog ID | NAM-ML-3900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 26, 1986 |
| Publisher | Namco |
| Developer | Namco |
| Players | 1 |
| Peripherals | Famicom Controller |

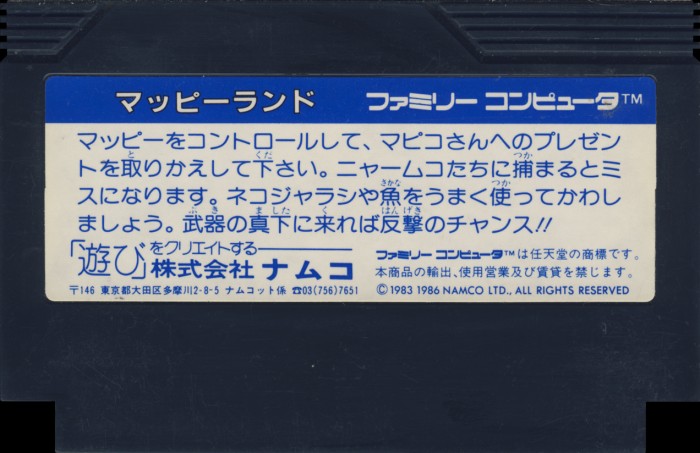

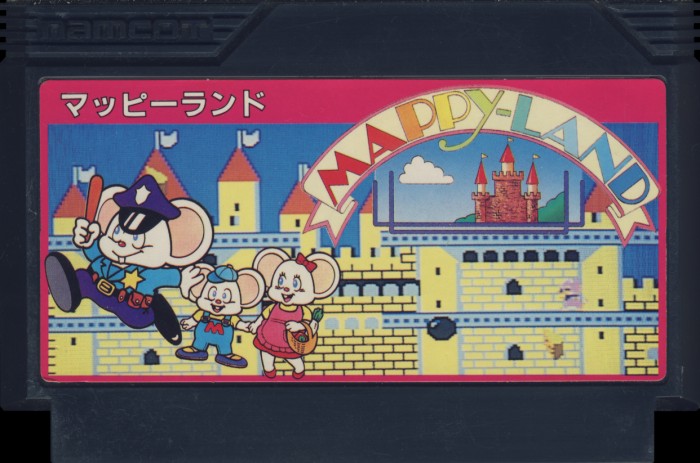

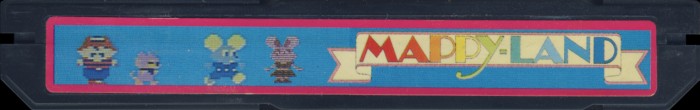

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

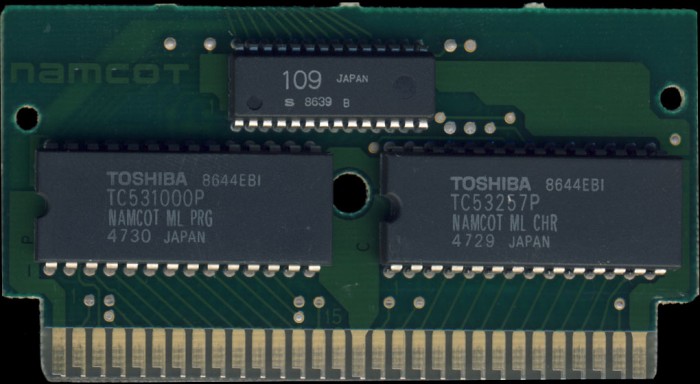

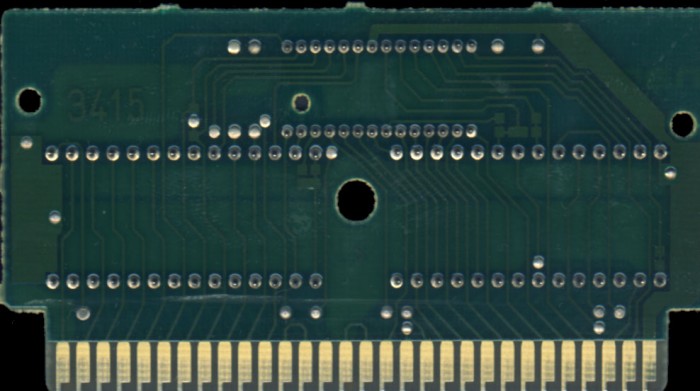

PCB Properties
| Name | 3415 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 8644 |
| Est First Run | November 1986 |
| PCB Class | NAMCOT-3415 |
| iNES Mapper | 206 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 109 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAMCOT ML PRG | 128 KB | 15BE6E58 | 1 |
| CHR0 | NAMCOT ML CHR | 32 KB | 7F107D71 | 1 |
| N/A | ROMs Combined | 160 KB | 2E563C66 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| P | Toshiba | TC531000P 4730 | Mask ROM 128 KB | DIP-28 | 8644 EBI | 8644 | |
| C | Toshiba | TC53257P 4729 | Mask ROM 32 KB | DIP-28 | 8644 EBI | 8644 | |
| Sharp | 109 | Namcot 109 | DIP-28 | 8639 B | 8639 |
