Release Info
| Catalog ID | NES-RX-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | October 1992 |
| Publisher | LJN |
| Developer | BITS Studios |
| Players | 1 |
| Peripherals | NES Controller |

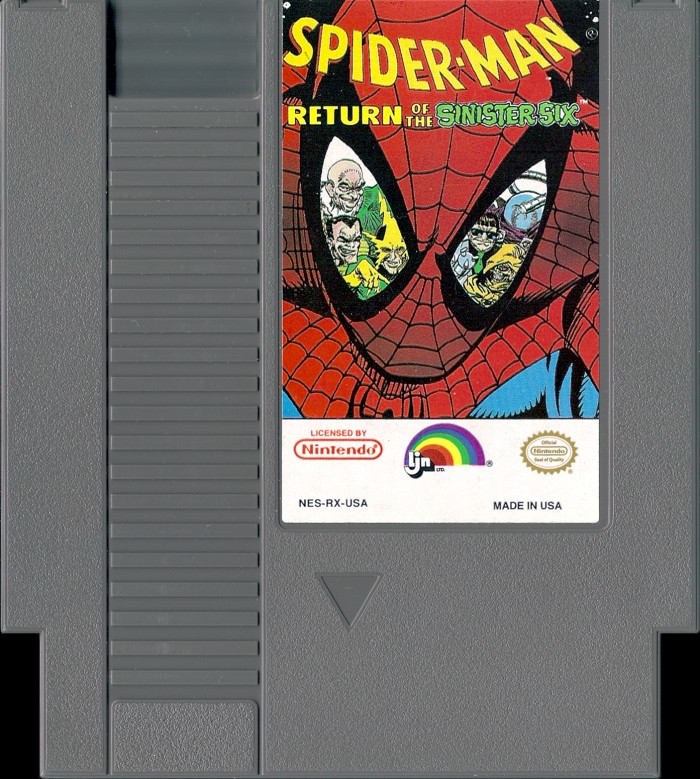

Cart Properties
| Cart Producer | Acclaim |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Manufactured by Acclaim Licensed by Nintendo Made in U.S.A. |
| Front Label ID | NES-RX-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code |

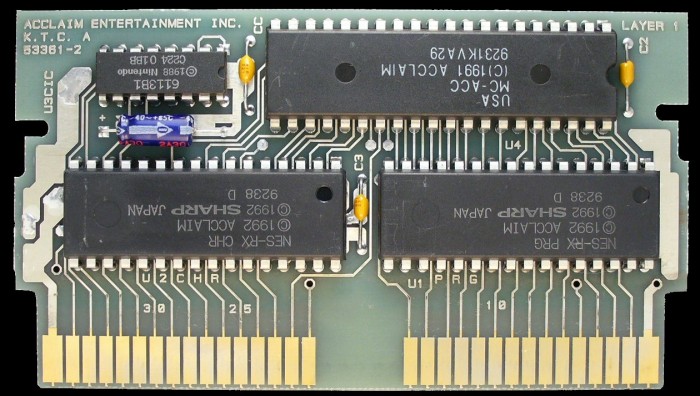

PCB Properties
| Name | 53361-2 |
|---|---|
| PCB Producer | Acclaim |
| Manufacturer | Key Tronic |
| Mfg Range | 9238 - 9238 (2) |
| Est First Run | September 1992 |
| PCB Class | ACCLAIM-MC-ACC |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MC-ACC |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-RX PRG | 128 KB | 00BEC4D7 | 2 |
| CHR0 | NES-RX CHR | 256 KB | 627B7662 | 3 |
| N/A | ROMs Combined | 384 KB | D679627A | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2311 | Mask ROM 128 KB | DIP-32 | 9238 D | 9238 | |
| U2 CHR | Sharp | LH5321 | Mask ROM 256 KB | DIP-32 | 9238 D | 9238 | |
| U3 CIC | LSI Logic | 6113B1 | Nintendo CIC | DIP-16 | 224 C | 9224 | |
| U4 | Acclaim | MC-ACC | Acclaim MC-ACC | DIP-40 | 9231 KVA29 | 9231 |
