Release Info
| Catalog ID | WT-SC-6 |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1992 |
| Publisher | Wisdom Tree |
| Developer | Wisdom Tree |
| Players | 1 |
| Peripherals | NES Controller |

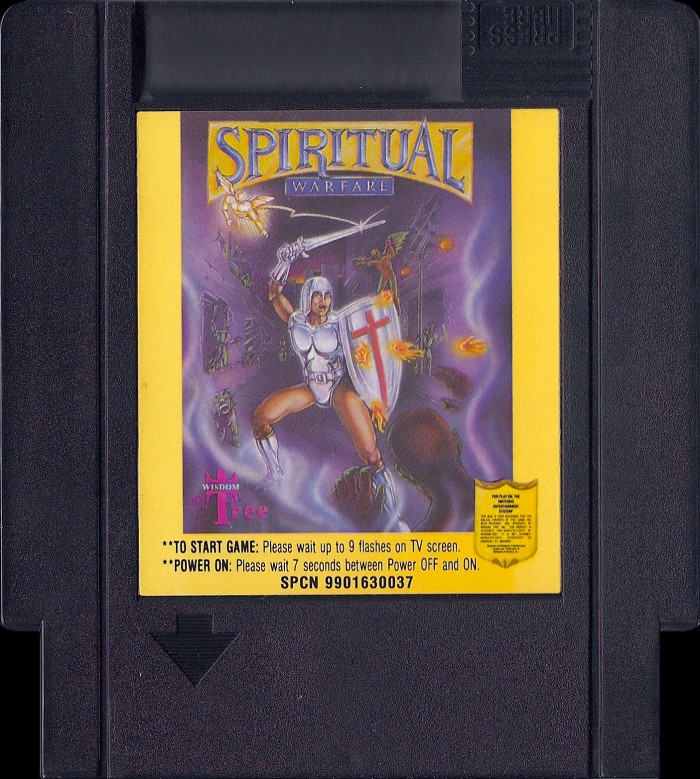

Cart Properties
| Cart Producer | Color Dreams |
|---|---|
| Color | Black |
| Form Factor | Inset Grip |

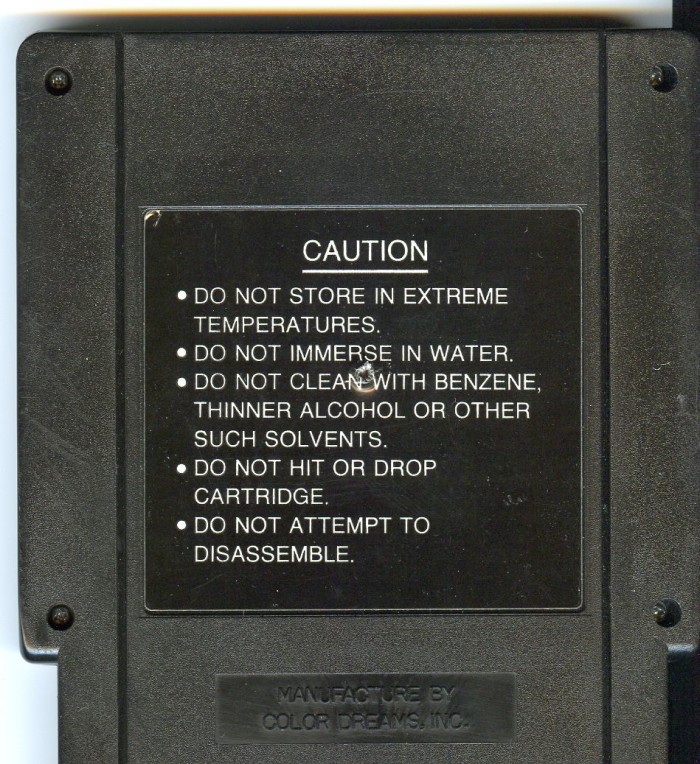

| Embossed Text | Manufacture by Color Dreams, Inc. |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

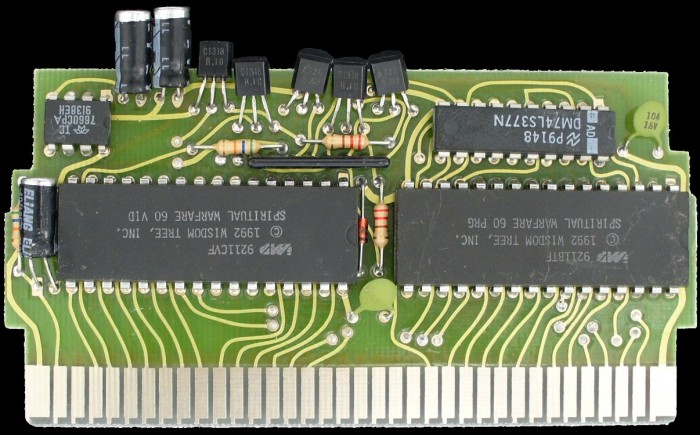

PCB Properties

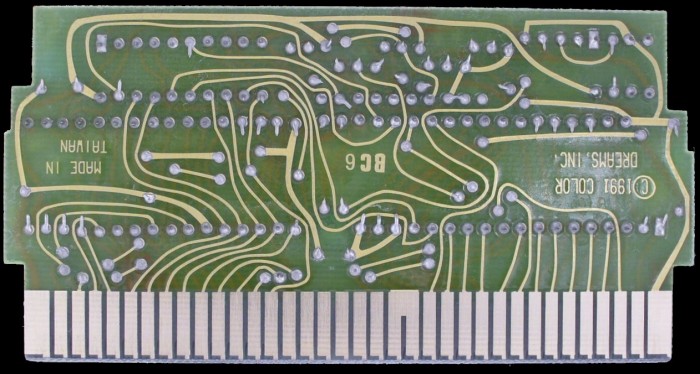

| Name | BC6 |
|---|---|
| PCB Producer | Color Dreams |
| Manufacturer | BTC |
| Mfg Range | 9211 - 9514 (3) |
| Est First Run | March 1992 |
| PCB Class | COLORDREAMS-74*377 |
| iNES Mapper | 11 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 7660 |
| Hardware | 74xx377 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SPIRITUAL WARFARE 60 PRG | 128 KB | CA37AA92 | 1 |
| CHR0 | SPIRITUAL WARFARE 60 VID | 128 KB | 4A0822FD | 3 |
| N/A | ROMs Combined | 256 KB | B786C2AC | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IMP | IM231003 | Mask ROM 128 KB | DIP-32 | 9211 BTF | 9211 | ||
| IMP | IM231003 | Mask ROM 128 KB | DIP-32 | 9211 CVF | 9211 | ||
| National Semiconductor | DM74LS377N | 74-377 Series | DIP-20 | 9148 P | 9148 | AD | |
| Teledyne | TC7660CPA | 7660 DC Charge Pump | DIP-8 | 9138 EH | 9138 |
