Release Info
| Catalog ID | NES-EM-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | January 1990 |
| Publisher | Hi Tech Expressions |
| Developer | The Software Toolworks |
| Players | 2 |
| Peripherals | NES Controller |
Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-EM-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 07 |

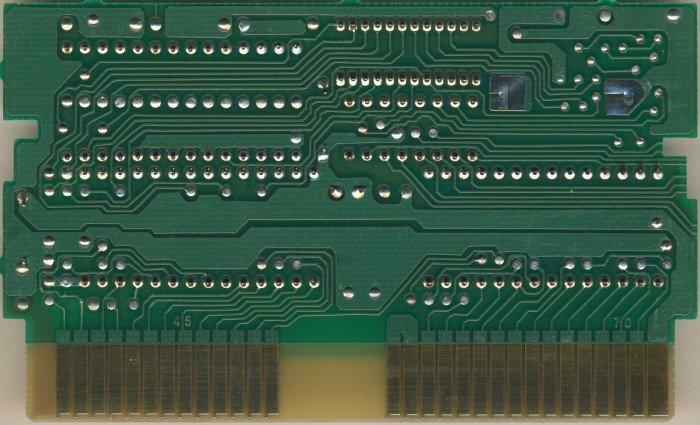

PCB Properties
| Name | NES-SJROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9002 - 9009 (2) |
| Est First Run | January 1990 |
| PCB Class | NES-SJROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-EM-0 PRG | 128 KB | 3484AB0C | 2 |
| CHR0 | NES-EM-0 CHR | 32 KB | DDCFE401 | 2 |
| N/A | ROMs Combined | 160 KB | D7F6320C | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5378 | Mask ROM 128 KB | DIP-28 | 0CC 7J | 9009 | |
| U2 CHR | Ricoh | RP23256E 2847 | Mask ROM 32 KB | DIP-28 | 0CC 41 | 9009 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9006 7 AA | 9006 | |
| U4 MMC1 | NEC | MMC1B2 | Nintendo MMC1 | DIP-24 | 9007 B3016 | 9007 | |
| U5 W-RAM | Sanyo | LC3664R-15 | SRAM 8 KB | DIP-28 | 9B 175 | 8944 |
