Release Info
| Catalog ID | NES-EM-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | January 1990 |
| Publisher | Hi Tech Expressions |
| Developer | The Software Toolworks |
| Players | 2 |
| Peripherals | NES Controller |

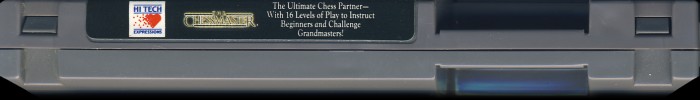

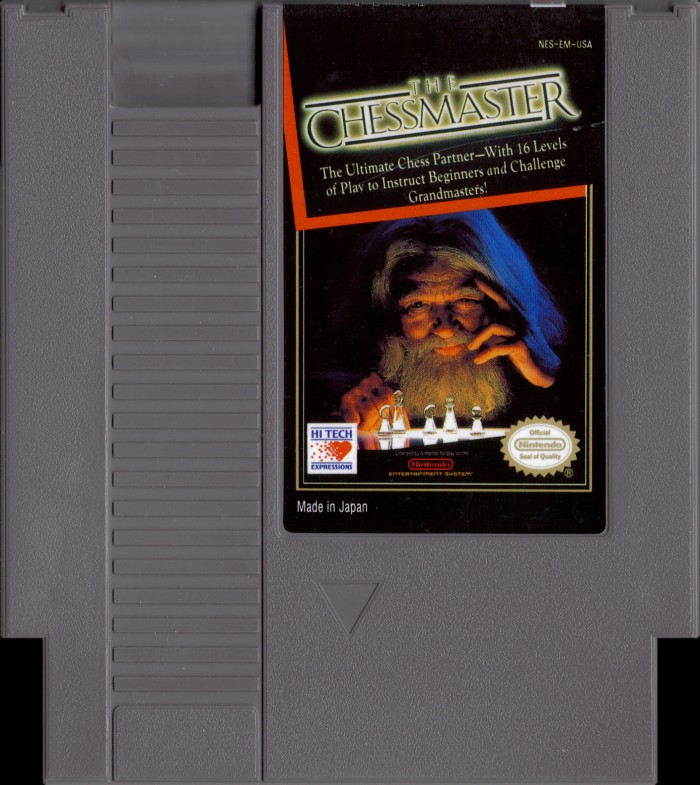

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-EM-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

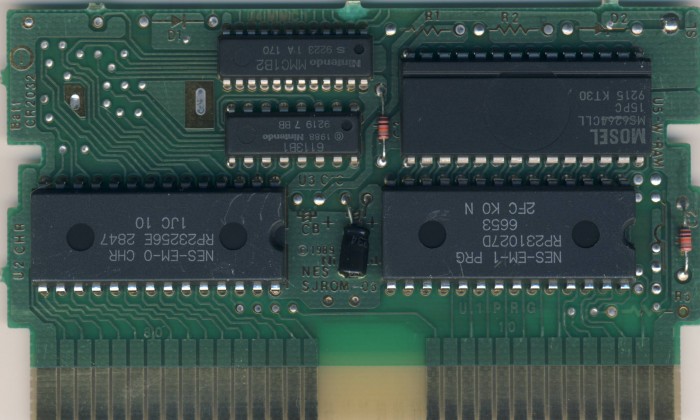

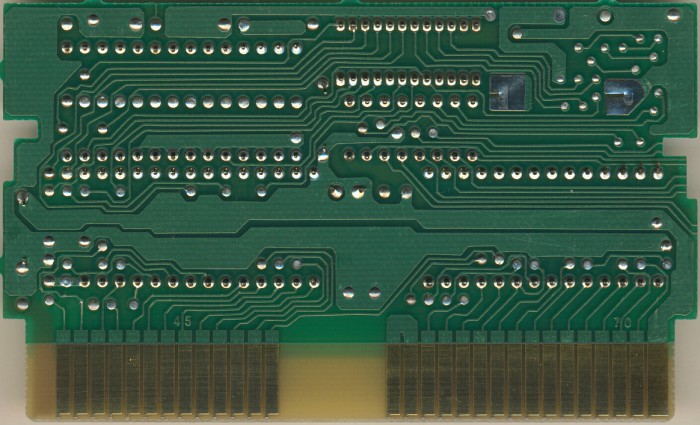

PCB Properties
| Name | NES-SJROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9002 - 9223 (3) |
| Est First Run | January 1990 |
| PCB Class | NES-SJROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-EM-1 PRG | 128 KB | F512D742 | 1 |
| CHR0 | NES-EM-0 CHR | 32 KB | DDCFE401 | 3 |
| N/A | ROMs Combined | 160 KB | 19F4CA6B | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 6653 | Mask ROM 128 KB | DIP-28 | 2FC K0 N | 9223 | |
| U2 CHR | Ricoh | RP23256E 2847 | Mask ROM 32 KB | DIP-28 | 1JC 10 | 9136 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9219 7 BB | 9219 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9223 1 A 170 | 9223 | |
| U5 W-RAM | MOSEL | MS6264CLL-15PC | SRAM 8 KB | DIP-28 | 9215 KT30 | 9215 |
