Release Info
| Catalog ID | NES-LC-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | April 1989 |
| Publisher | Br?derbund |
| Developer | Nihon Falcom |
| Players | 1 |
| Peripherals | NES Controller |

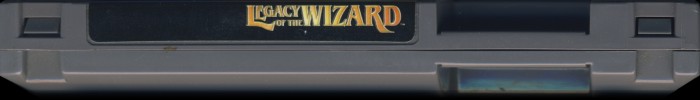

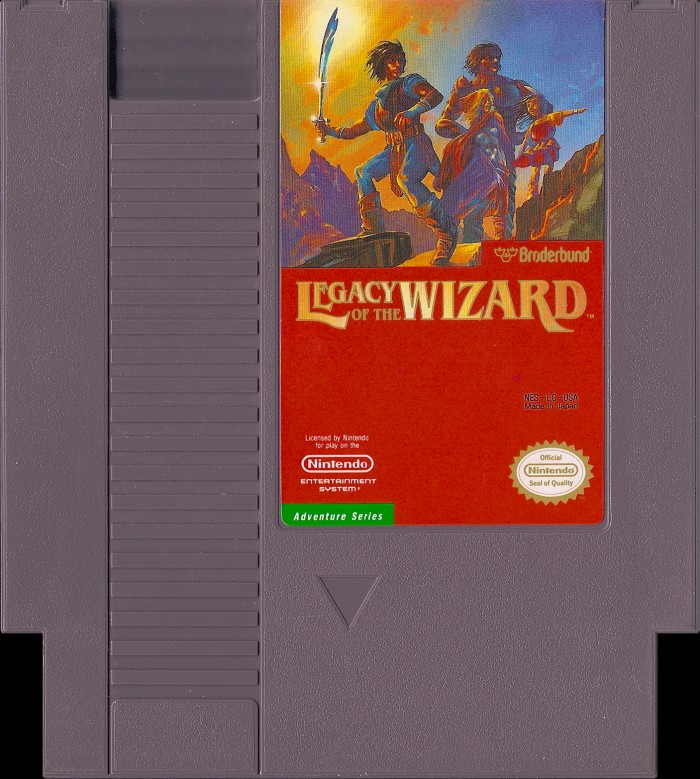

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-LC-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 09 |

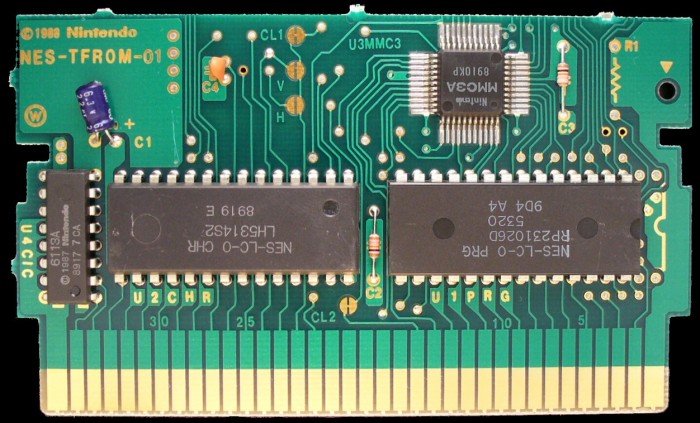

PCB Properties
| Name | NES-TFROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8919 - 9001 (3) |
| Est First Run | May 1989 |
| PCB Class | NES-TFROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113A |
| Hardware | MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-LC-0 PRG | 128 KB | 4CDCAF6B | 5 |
| CHR0 | NES-LC-0 CHR | 64 KB | 16C29089 | 5 |
| N/A | ROMs Combined | 192 KB | F181C021 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5320 | Mask ROM 128 KB | DIP-28 | 9D4 A4 | 8917 | |
| U2 CHR | Sharp | LH5314 S2 | Mask ROM 64 KB | DIP-28 | 8919 D | 8919 | |
| U3 MMC3 | NEC | MMC3A | Nintendo MMC3 | TQFP-44 | 8910 KP | 8910 | |
| U4 CIC | Sharp | 6113A | Nintendo CIC | DIP-16 | 8917 7 CA | 8917 |
