Release Info
| Catalog ID | NES-LL-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | October 1992 |
| Publisher | Kemco |
| Developer | Kemco |
| Players | 1 |
| Peripherals | NES Controller |

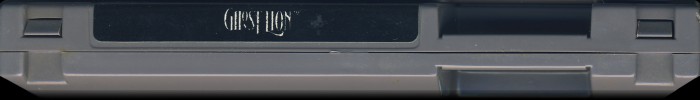

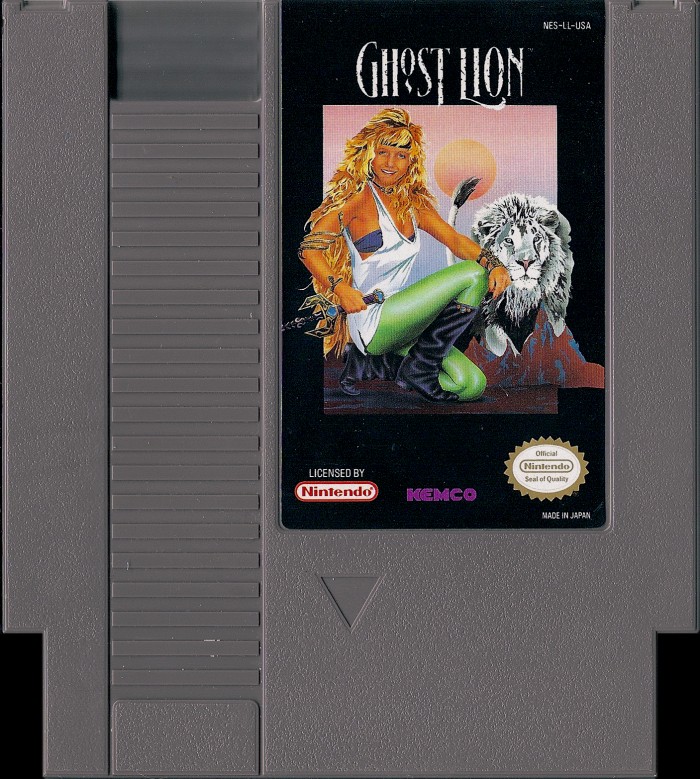

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-LL-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 07 |

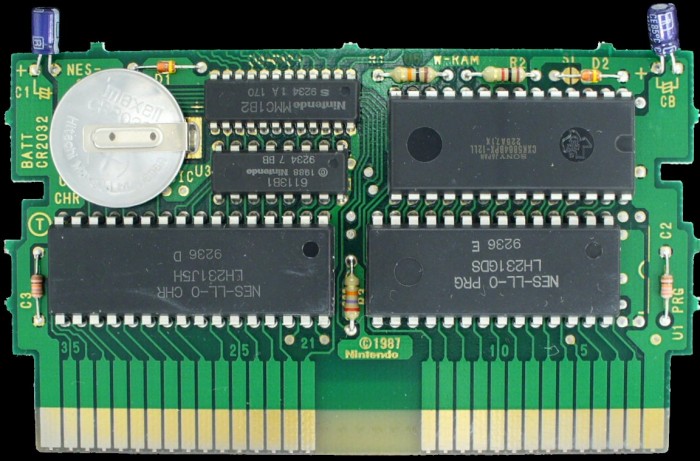

PCB Properties
| Name | NES-SKROM-06 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9236 |
| Est First Run | September 1992 |
| PCB Class | NES-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-LL-0 PRG | 128 KB | 8D94797F | 1 |
| CHR0 | NES-LL-0 CHR | 128 KB | A73F53AE | 1 |
| N/A | ROMs Combined | 256 KB | 04766130 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G DS | Mask ROM 128 KB | DIP-28 | 9236 E | 9236 | |
| U2 CHR | Sharp | LH231J 5H | Mask ROM 128 KB | DIP-32 | 9236 D | 9236 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9234 7 BB | 9234 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9234 1 A 170 | 9234 | |
| U5 W-RAM | Sony | CXK5864BPX-12LL | SRAM 8 KB | DIP-28 | 225 A71X | 9225 |
