Release Info
| Catalog ID | NES-CU-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | July 1989 |
| Publisher | Nintendo |
| Developer | Rare |
| Players | 1 |
| Peripherals | NES Controller |

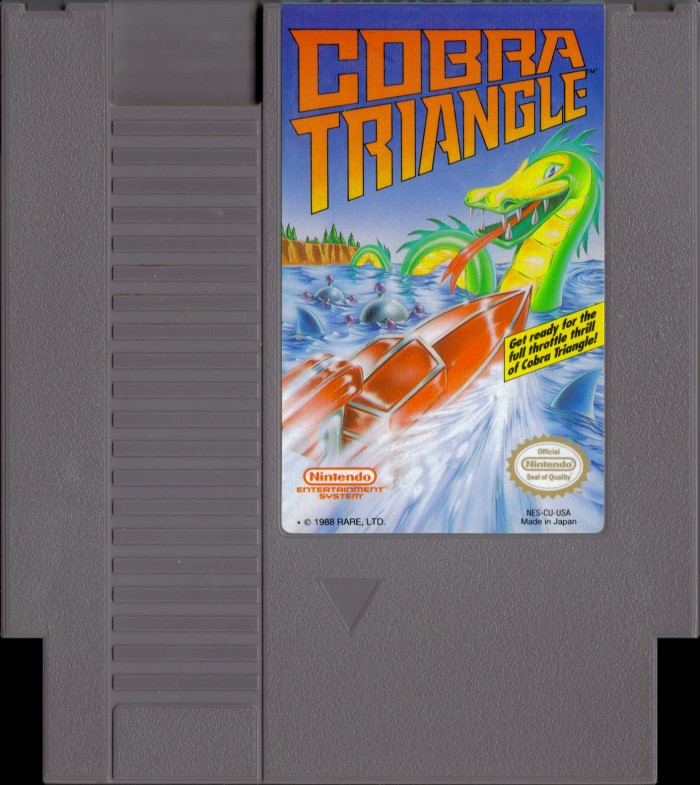

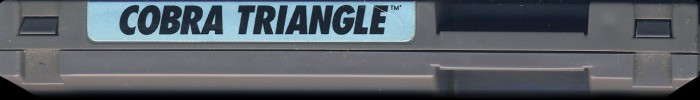

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-CU-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-ANROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8921 |
| Est First Run | May 1989 |
| PCB Class | NES-ANROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113A |
| Hardware | 74xx02, 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-CU-0 PRG | 128 KB | C8AD4F32 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Ricoh | RP231026D 5329 | Mask ROM 128 KB | DIP-28 | 9E4 74 | 8921 | ||
| CHR-RAM | Fujitsu | MB8464A-15L-SK | SRAM 8 KB | SDIP-28 | 8916 KT16 | 8916 | |
| Sharp | 6113A | Nintendo CIC | DIP-16 | 8917 3 AA | 8917 | ||
| GoldStar | GD74HC161 | 74-161 Series | DIP-16 | H42 | 8842 | ||
| NEC | D74HC02C | 74-02 Series | DIP-14 | 8906 S7 | 8906 |
