Release Info
| Catalog ID | NES-VP-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | March 1990 |
| Publisher | Capcom |
| Developer | Capcom |
| Players | 1 |
| Peripherals | NES Controller |

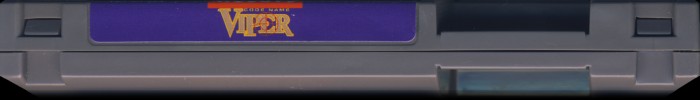

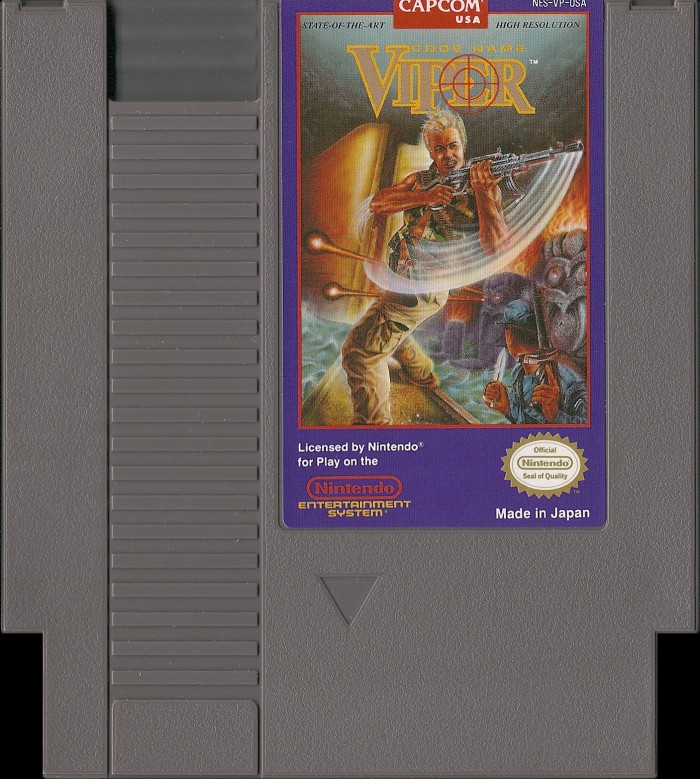

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-VP-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 12 |

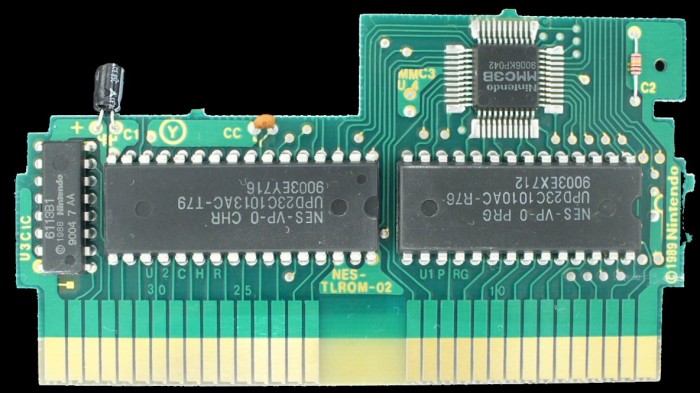

PCB Properties
| Name | NES-TLROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9006 |
| Est First Run | February 1990 |
| PCB Class | NES-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-VP-0 PRG | 128 KB | 1253EA03 | 1 |
| CHR0 | NES-VP-0 CHR | 128 KB | B93125DA | 1 |
| N/A | ROMs Combined | 256 KB | E2313813 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010AC R76 | Mask ROM 128 KB | DIP-28 | 9003 EX712 | 9003 | |
| U2 CHR | NEC | UPD23C1013AC T79 | Mask ROM 128 KB | DIP-32 | 9003 EY716 | 9003 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9004 7 AA | 9004 | |
| U4 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9006 KP042 | 9006 |
