Release Info
| Catalog ID | NES-QJ-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » Multi-cart |
| Release Date | December 1990 |
| Publisher | Nintendo |
| Developer | Technos |
| Players | 4 |
| Peripherals | NES Controller,4-Player Adapter |

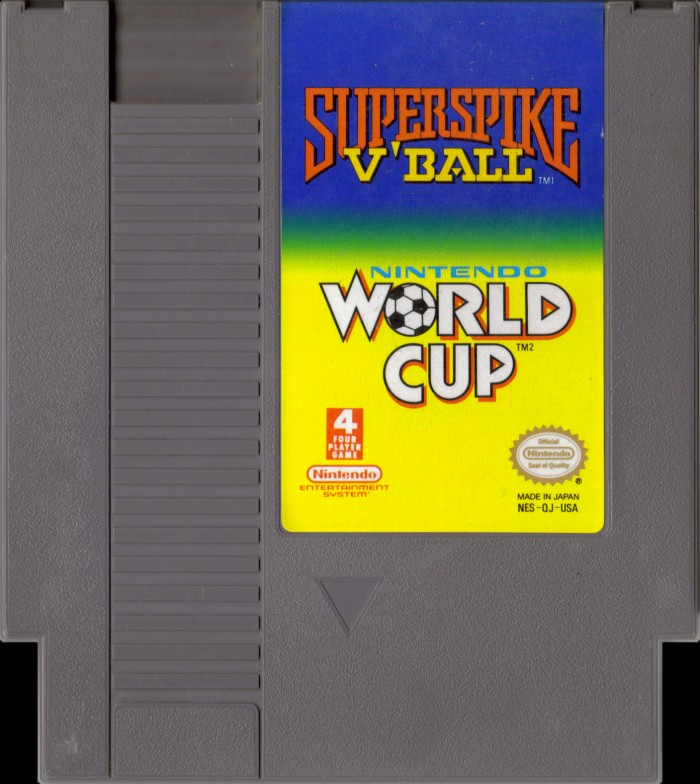

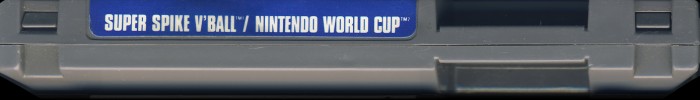

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-QJ-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 07 |

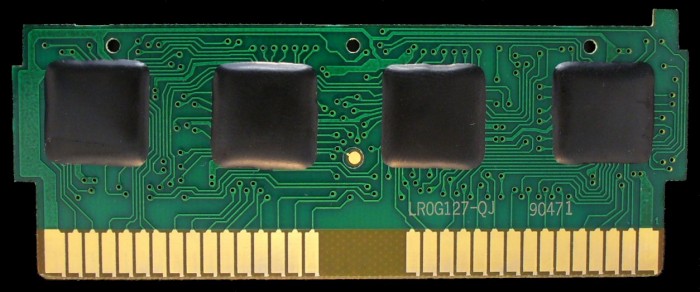

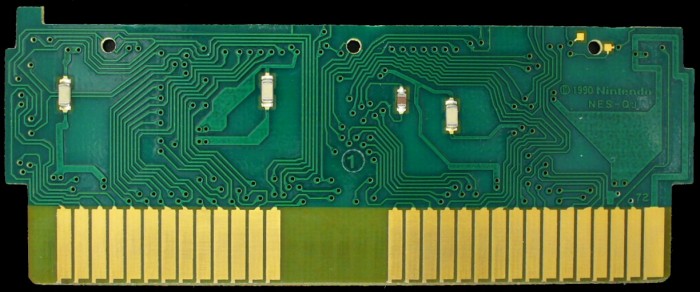

PCB Properties
| Name | NES-QJ |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Sharp |
| Mfg Range | 9047 |
| Est First Run | November 1990 |
| PCB Class | NES-QJ |
| iNES Mapper | 47 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | |
| Hardware | 74xx161, MMC3 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 256 KB | 35190A3F | 1 |
| CHR0 | Not Present | 256 KB | FE1363D1 | 1 |
| N/A | ROMs Combined | 512 KB | 407D6FFD | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | Sharp | LROG127 QJ | Chip-on-Board PCB | PCB | 9047 1 | 9047 | |
| __Unknown | EP2000 | Bonded ROM 256 KB | EPOXY | ||||
| __Unknown | EP2000 | Bonded ROM 256 KB | EPOXY | ||||
| __Unknown | EP3193A | Nintendo CIC | EPOXY | ||||
| __Unknown | EPMMC3 | Nintendo MMC3 | EPOXY | ||||
| __Unknown | EP74161 | 74-161 Series | EPOXY |
