Release Info
| Catalog ID | ALT-7C |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | August 3, 1991 |
| Publisher | Altron |
| Developer | Tengen |
| Players | 2 |
| Peripherals | Famicom Controller |

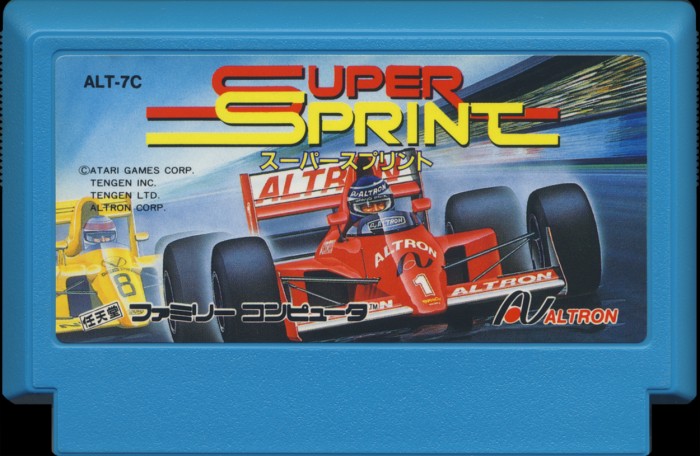

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Ocean Blue |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | ALT-7C |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

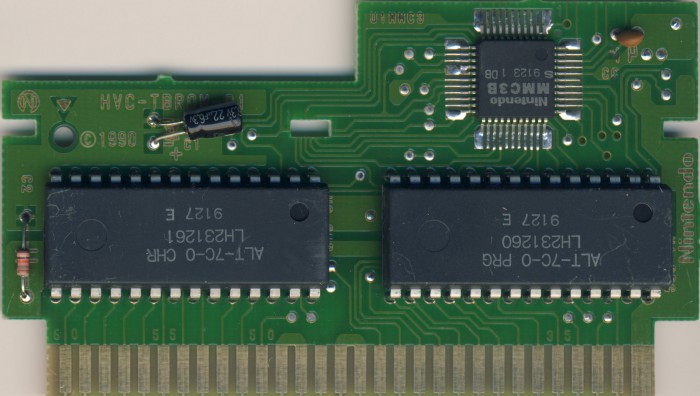

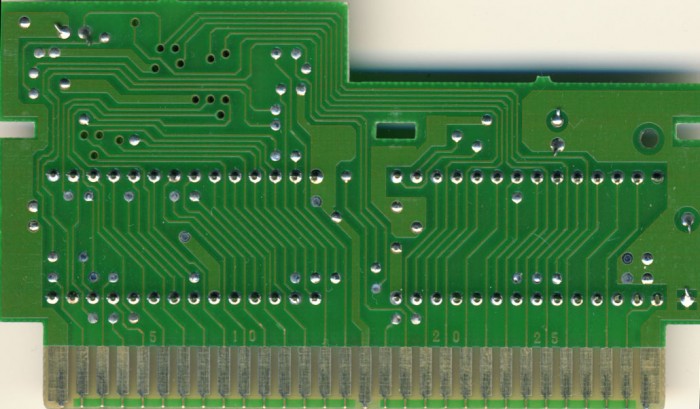

PCB Properties
| Name | HVC-TBROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9127 |
| Est First Run | July 1991 |
| PCB Class | HVC-TBROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | ALT-7C-0 PRG | 64 KB | 0F0D64B7 | 1 |
| CHR0 | ALT-7C-0 CHR | 64 KB | 15C74DDC | 1 |
| N/A | ROMs Combined | 128 KB | 9CBB0291 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2312 60 | Mask ROM 64 KB | DIP-28 | 9127 E | 9127 | |
| U2 CHR | Sharp | LH2312 61 | Mask ROM 64 KB | DIP-28 | 9127 E | 9127 | |
| U3 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9123 1 DB | 9123 |
