Release Info
| Catalog ID | NES-7V-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | November 1991 |
| Publisher | JVC |
| Developer | LucasFilm Games |
| Players | 1 |
| Peripherals | NES Controller |

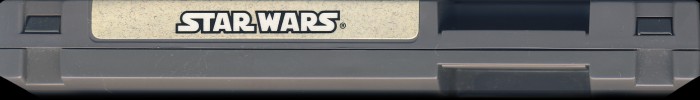

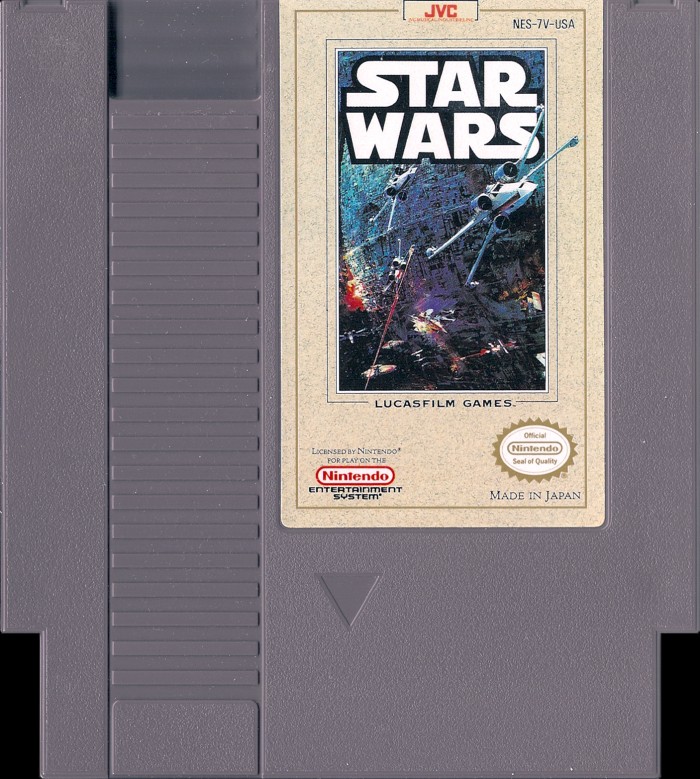

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-7V-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 00 |

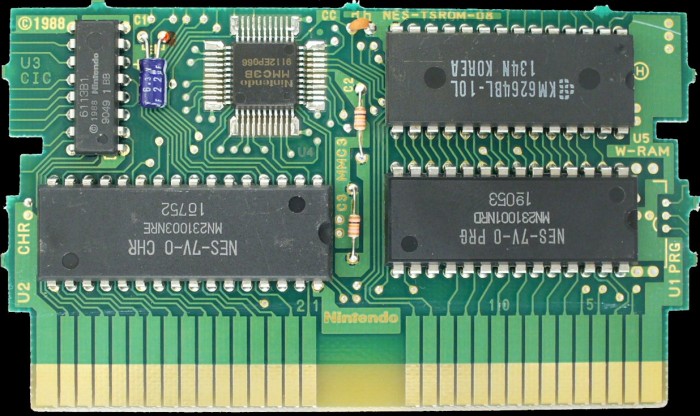

PCB Properties
| Name | NES-TSROM-08 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9141 |
| Est First Run | October 1991 |
| PCB Class | NES-TSROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-7V-0 PRG | 128 KB | B00B4EB8 | 1 |
| CHR0 | NES-7V-0 CHR | 128 KB | 4FD41AC1 | 5 |
| N/A | ROMs Combined | 256 KB | C1C3636B | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Panasonic | MN231001 NRD | Mask ROM 128 KB | DIP-28 | 1 53 | 9138 | |
| U2 CHR | Panasonic | MN231003 NRE | Mask ROM 128 KB | DIP-32 | 1 52 | 9141 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9049 1 BB | 9049 | |
| U4 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9112 EP066 | 9112 | |
| U5 W-RAM | Samsung | KM6264BL-10L | SRAM 8 KB | DIP-28 | 134 N | 9134 |
