Release Info
| Catalog ID | NES-7V-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | November 1991 |
| Publisher | JVC |
| Developer | LucasFilm Games |
| Players | 1 |
| Peripherals | NES Controller |

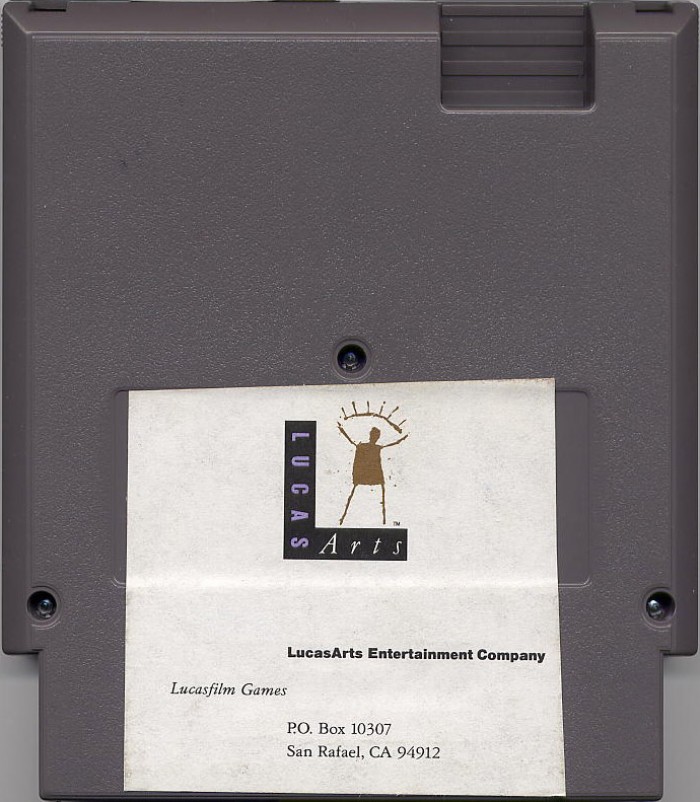

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

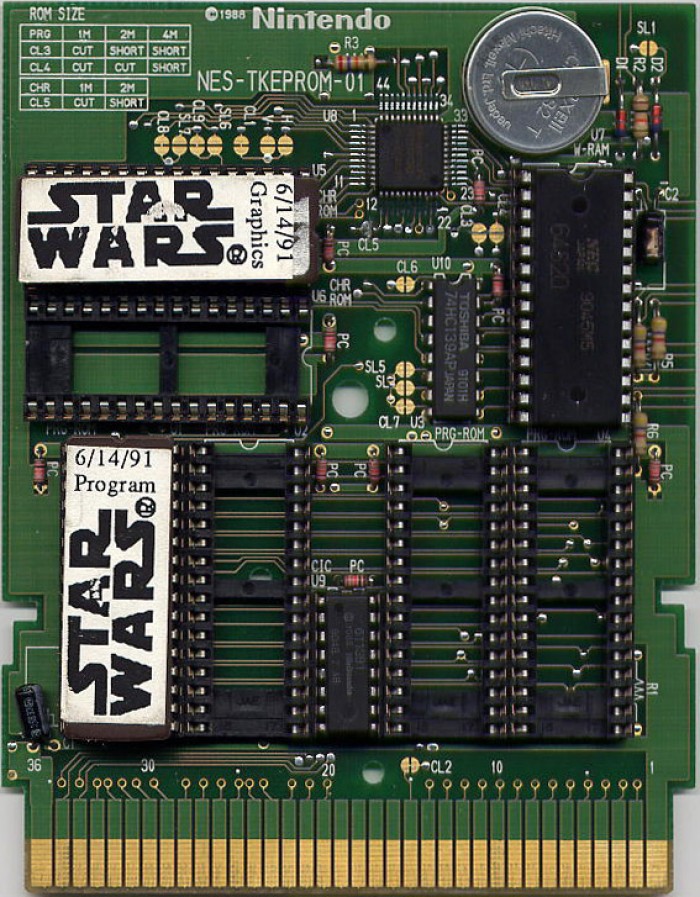

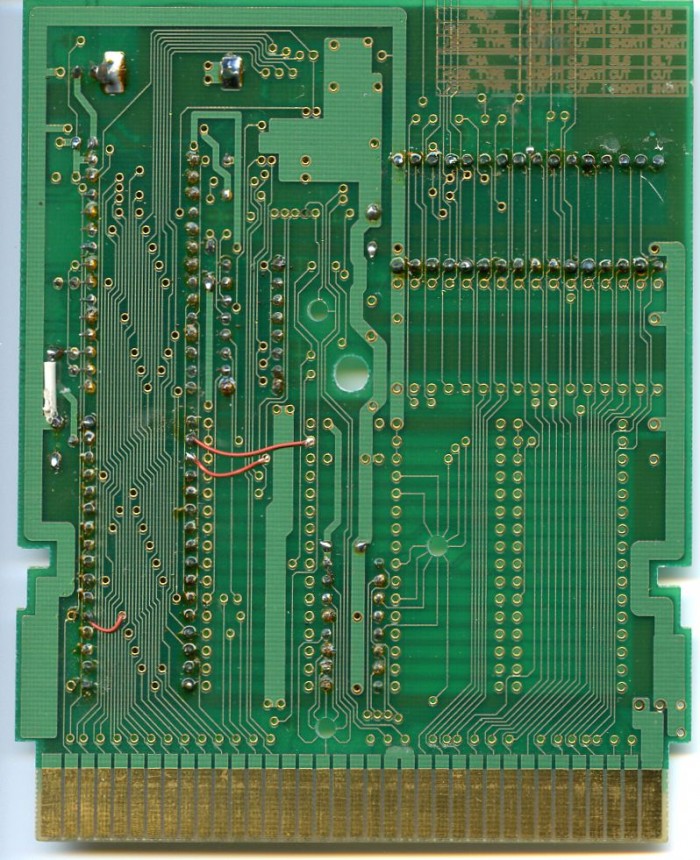

PCB Properties
| Name | NES-TKEPROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9141 |
| Est First Run | October 1991 |
| PCB Class | NES-TKEPROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx139, MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | STAR WARS 6/14/91 PROGRAM | 128 KB | 6526EA5F | 1 |
| CHR0 | STAR WARS 6/14/91 GRAPHICS | 128 KB | 4FD41AC1 | 5 |
| N/A | ROMs Combined | 256 KB | B30599A1 | 1 |

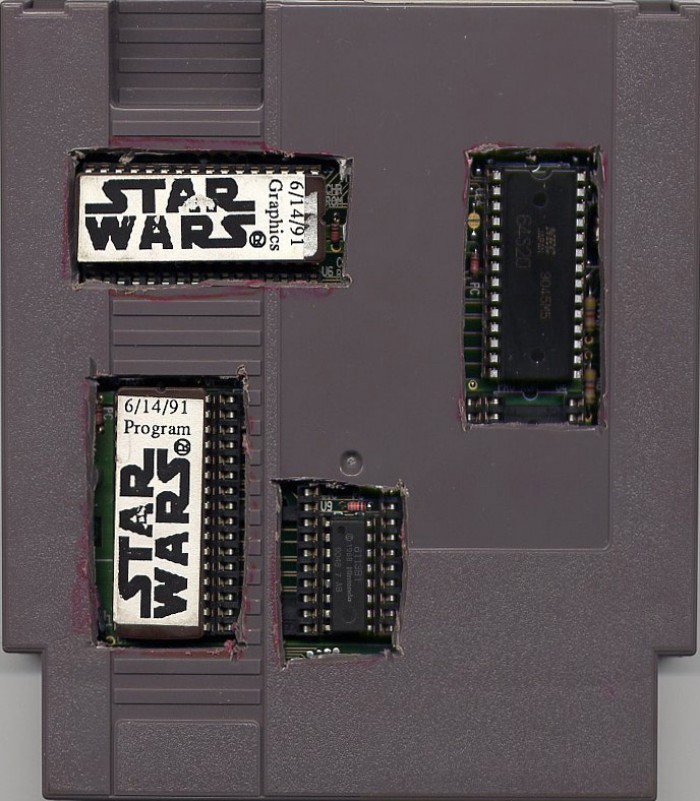

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | __Unknown | 27C1000 | UV EPROM 128 KB | DIP-32 | |||
| U10 | Toshiba | 74HC139AP | 74-139 Series | DIP-16 | 9101 H | 9101 | |
| U5 CHR-ROM | __Unknown | 27C1000 | UV EPROM 128 KB | DIP-32 | |||
| U7 W-RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9045 M5 | 9045 | |
| U8 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | |||
| U9 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9018 7 AB | 9018 |
