Release Info
| Catalog ID | NES-FF-CAN |
|---|---|
| Region | Canada (NTSC) |
| Class | Licensed |
| Release Date | July 12, 1990 |
| Publisher | Nintendo |
| Developer | Square |
| Players | 1 |
| Peripherals | NES Controller |

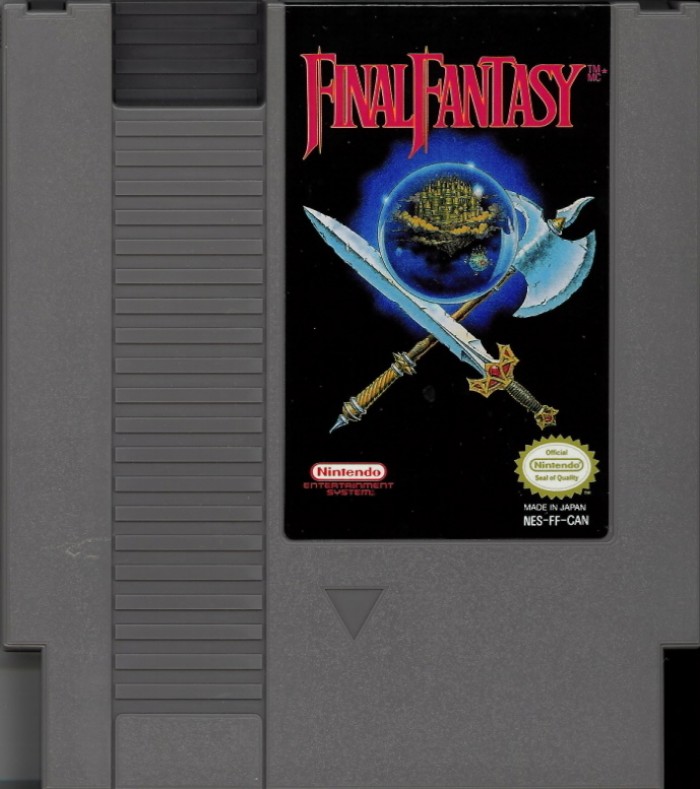

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-FF-CAN |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 12 |
PCB Properties
| Name | NES-SNROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9024 |
| Est First Run | June 1990 |
| PCB Class | NES-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-FF-0 PRG | 256 KB | CEBD2A31 | 8 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH5322 89 | Mask ROM 256 KB | DIP-32 | 9019 D | 9019 | |
| U2 CHR RAM | Sharp | LH5160YF-10L | SRAM 8 KB | DIP-28 | 022 B | 9022 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9023 5 AA | 9023 | |
| U4 MMC1 | NEC | MMC1B2 | Nintendo MMC1 | DIP-24 | 8952 B3026 | 8952 | |
| U5 W-RAM | Panasonic | MN4464-08LL | SRAM 8 KB | DIP-28 | 065 B1 | 9024 |
