Release Info
| Catalog ID | NES-FF-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | May 1990 |
| Publisher | Nintendo |
| Developer | Square |
| Players | 1 |
| Peripherals | NES Controller |

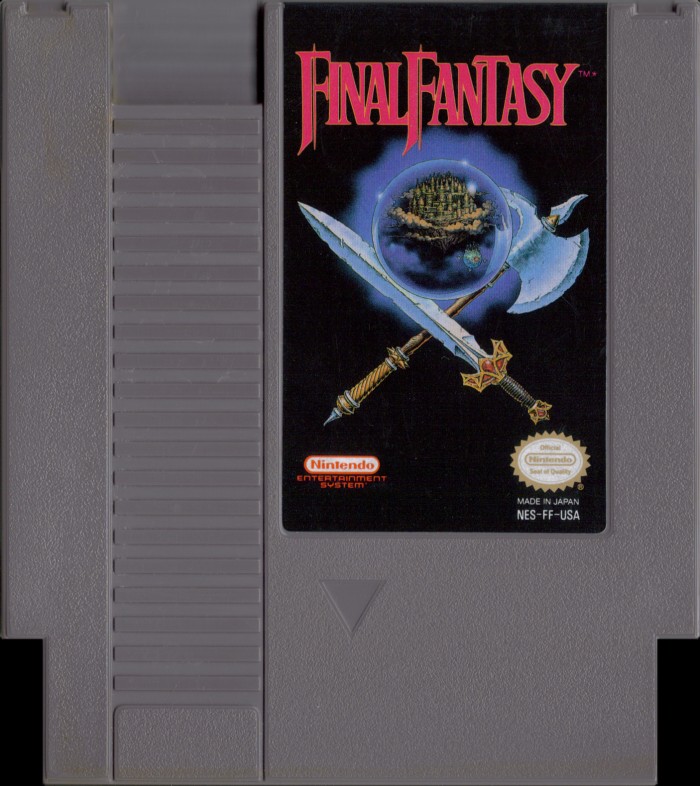

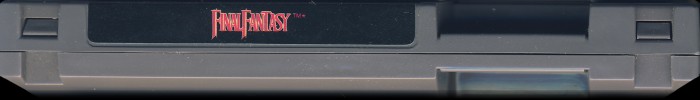

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-FF-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 12 |
PCB Properties
| Name | NES-SNROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9016 - 9024 (4) |
| Est First Run | April 1990 |
| PCB Class | NES-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-FF-0 PRG | 256 KB | CEBD2A31 | 8 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH5322 89 | Mask ROM 256 KB | DIP-32 | 9016 D | 9016 | |
| U2 CHR RAM | Sony | CXK5864BP-12LL | SRAM 8 KB | DIP-28 | 02 25E | 9005 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9011 3 AA | 9011 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9016 3 AA | 9016 | |
| U5 W-RAM | Sony | CXK5864BP-12LL | SRAM 8 KB | DIP-28 | 90 39E | 8940 |
