Release Info
| Catalog ID | NES-3P-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | September 1990 |
| Publisher | Arcadia |
| Developer | Trilobyte |
| Players | 4 |
| Peripherals | NES Controller,4-Player Adapter |

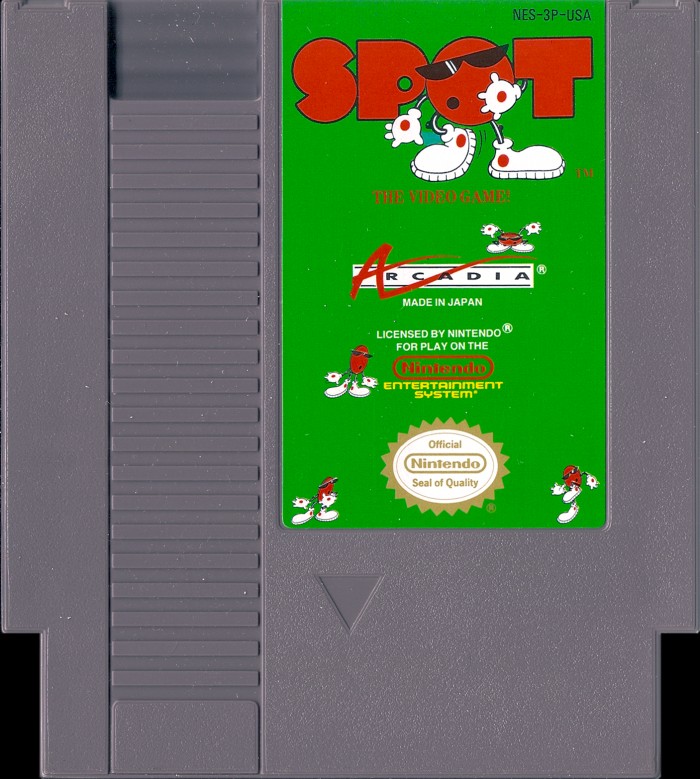

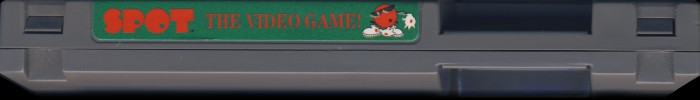

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-3P-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 19 |
PCB Properties
| Name | NES-SNROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9029 |
| Est First Run | July 1990 |
| PCB Class | NES-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-3P-0 PRG | 128 KB | CFAE9DFA | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Panasonic | MN231001 NTC | Mask ROM 128 KB | DIP-28 | 079 53 | 9029 | |
| U2 CHR RAM | Sanyo | LC3664R-15 | SRAM 8 KB | DIP-28 | 9A 388 | 8939 | |
| U3 CIC | LSI Logic | 6113B1 | Nintendo CIC | DIP-16 | 026 C | 9026 | |
| U4 MMC1 | NEC | MMC1B2 | Nintendo MMC1 | DIP-24 | 9011 B3012 | 9011 | |
| U5 W-RAM | Sanyo | LC3664R-15 | SRAM 8 KB | DIP-28 | 9A 388 | 8939 |
