Release Info
| Catalog ID | NAM-FSH-4900 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | July 31, 1989 |
| Publisher | Namco |
| Developer | Now Production |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | |
|---|---|
| Color | Blue |
| Form Factor | Large |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

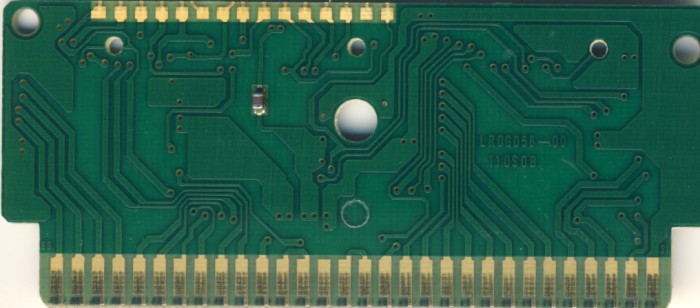

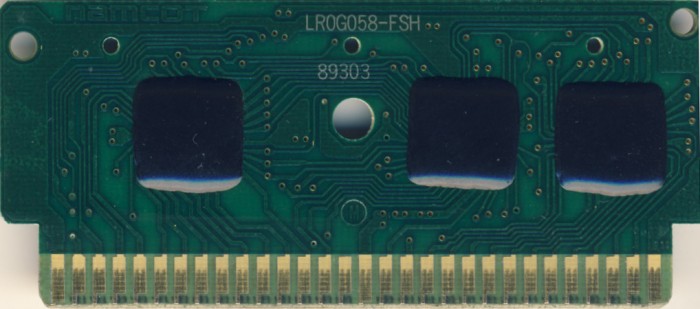

PCB Properties
| Name | LROG058-00 |
|---|---|
| PCB Producer | |
| Manufacturer | Sharp |
| Mfg Range | 8930 |
| Est First Run | July 1989 |
| PCB Class | NAMCOT-340 |
| iNES Mapper | 210 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 340 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | D666560F | 1 |
| CHR0 | Not Present | 128 KB | 34F019F2 | 1 |
| N/A | ROMs Combined | 256 KB | 46FD7843 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | Sharp | LROG058 FSH | Chip-on-Board PCB | PCB | 8930 3 | 8930 | |
| __Unknown | EP1000 | Bonded ROM 128 KB | EPOXY | ||||
| __Unknown | EP1000 | Bonded ROM 128 KB | EPOXY | ||||
| __Unknown | EP340 | Namcot 340 | EPOXY |
