Release Info
| Catalog ID | WT-KK-6 |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed » Multi-cart |
| Release Date | 1991 |
| Publisher | Wisdom Tree |
| Developer | Wisdom Tree |
| Players | 1 |
| Peripherals | NES Controller |

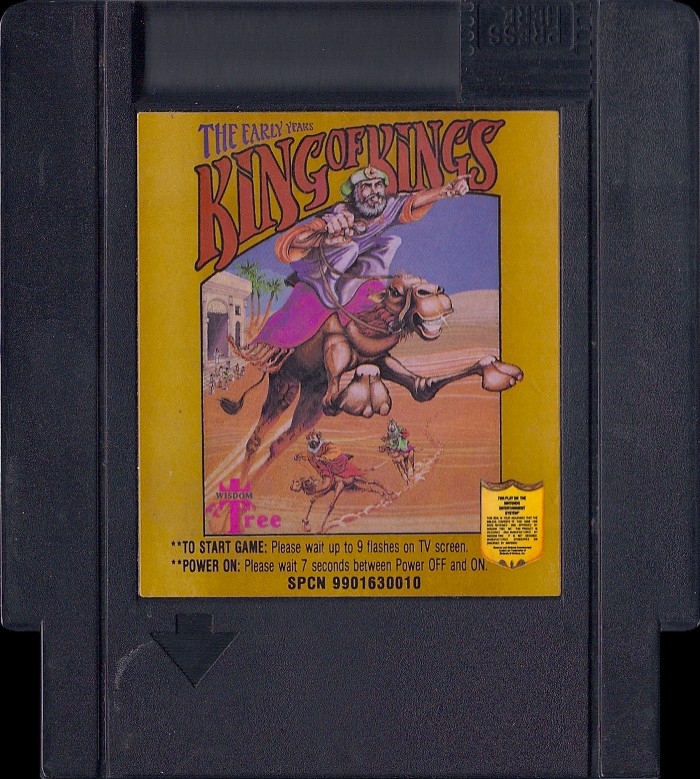

Cart Properties
| Cart Producer | Color Dreams |
|---|---|
| Color | Black |
| Form Factor | Inset Grip |

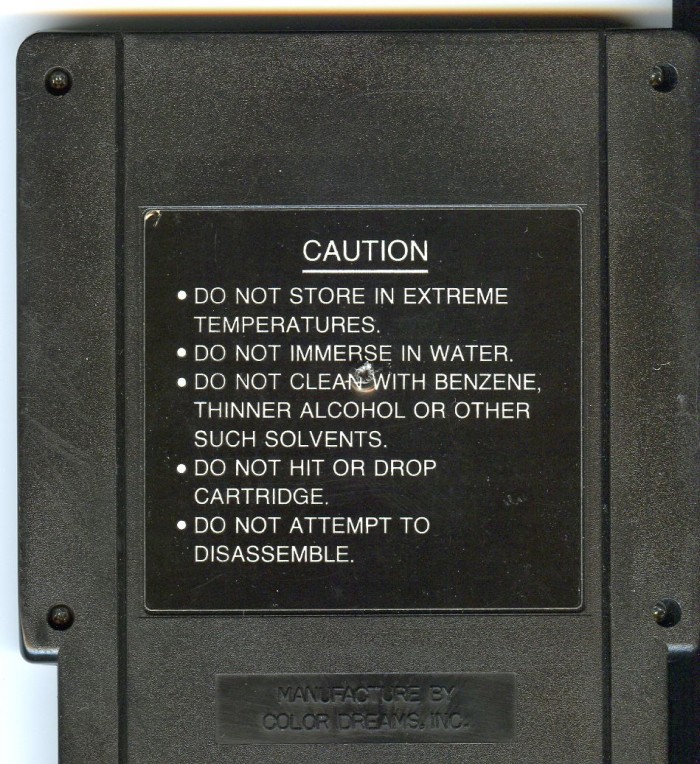

| Embossed Text | Manufacture by Color Dreams, Inc. |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

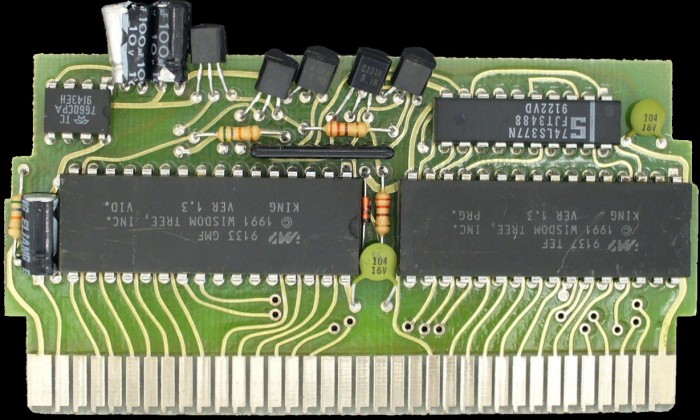

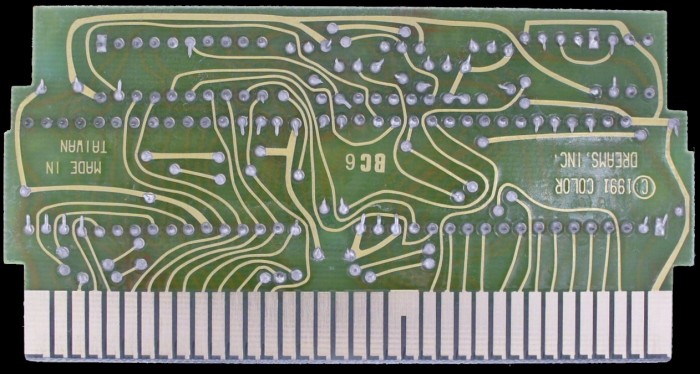

PCB Properties
| Name | BC6 |
|---|---|
| PCB Producer | Color Dreams |
| Manufacturer | BTC |
| Mfg Range | 9131 - 9143 (3) |
| Est First Run | August 1991 |
| PCB Class | COLORDREAMS-74*377 |
| iNES Mapper | 11 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 7660 |
| Hardware | 74xx377 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KING VER 1.3 PRG. | 128 KB | 541989E1 | 1 |
| CHR0 | KING VER 1.3 VID. | 128 KB | 1ACA7960 | 2 |
| N/A | ROMs Combined | 256 KB | 86974CCC | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IMP | IM231003 | Mask ROM 128 KB | DIP-32 | 9137 TEF | 9137 | ||
| IMP | IM231003 | Mask ROM 128 KB | DIP-32 | 9133 GMF | 9133 | ||
| Signetics | 74LS377N | 74-377 Series | DIP-20 | 9122 VD | 9122 | FJT3488 | |
| Teledyne | TC7660CPA | 7660 DC Charge Pump | DIP-8 | 9143 EH | 9143 |
