Release Info
| Catalog ID | WT-KK-6 |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed » Multi-cart |
| Release Date | 1991 |
| Publisher | Wisdom Tree |
| Developer | Wisdom Tree |
| Players | 1 |
| Peripherals | NES Controller |

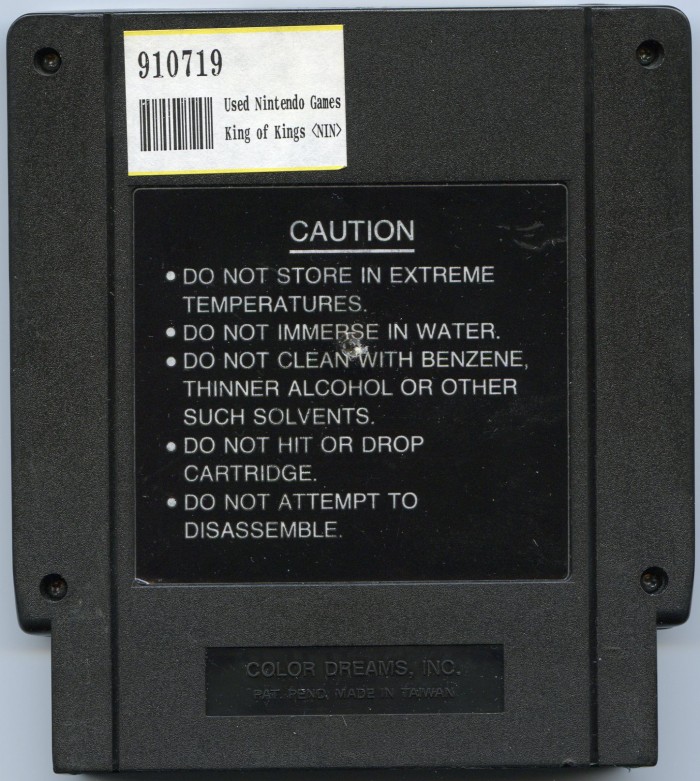

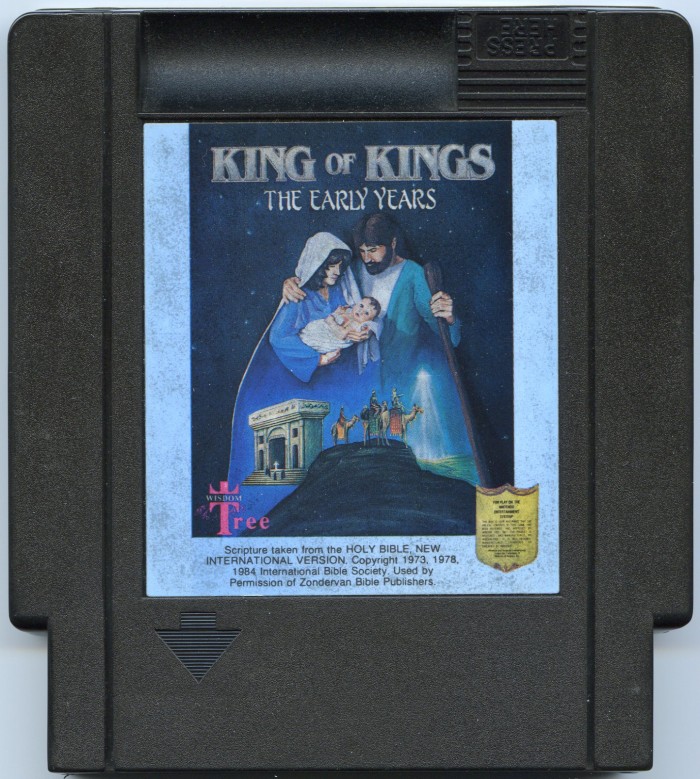

Cart Properties
| Cart Producer | Color Dreams |
|---|---|
| Color | Black |
| Form Factor | Inset Grip |
| Embossed Text | Color Dreams, Inc. Pat. Pend. Made in Taiwan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

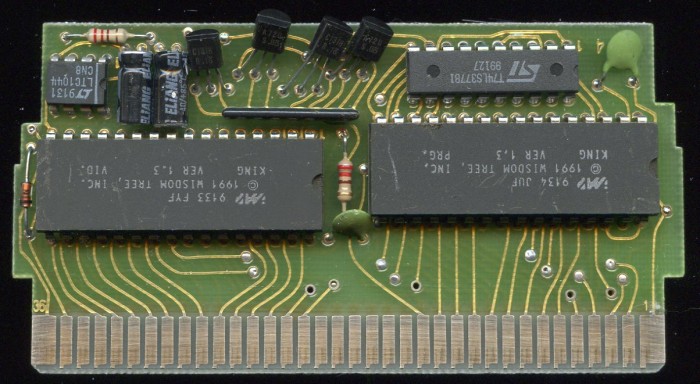

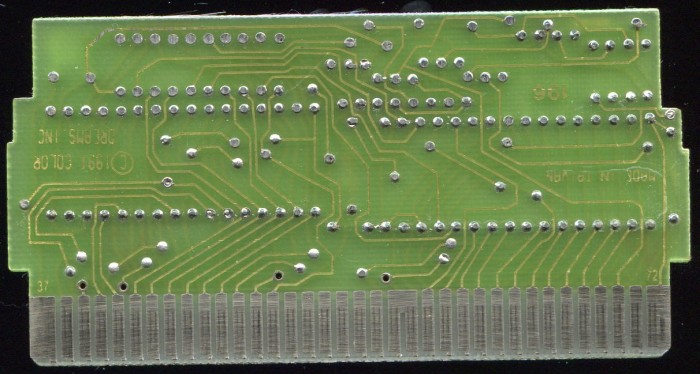

PCB Properties
| Name | 196 |
|---|---|
| PCB Producer | Color Dreams |
| Manufacturer | BTC |
| Mfg Range | 9131 - 9143 (4) |
| Est First Run | August 1991 |
| PCB Class | COLORDREAMS-74*377 |
| iNES Mapper | 11 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 74xx04 |
| Hardware | 74xx377 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KING VER 1.3 PRG. | 128 KB | 541989E1 | 2 |
| CHR0 | KING VER 1.3 VID. | 128 KB | 1ACA7960 | 3 |
| N/A | ROMs Combined | 256 KB | 86974CCC | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IMP | IM231003 | Mask ROM 128 KB | DIP-32 | 9134 JUF | 9134 | ||
| IMP | IM231003 | Mask ROM 128 KB | DIP-32 | 9133 FYF | 9133 | ||
| ST Micro | T74LS377B1 | 74-377 Series | DIP-20 | 9127 9 | 9127 | ||
| Linear Tech | LTC1044-CN8 | 7660 DC Charge Pump | DIP-8 | 9131 | 9131 |
