Release Info
| Catalog ID | NES-OG-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | January 1990 |
| Publisher | Konami |
| Developer | Konami |
| Players | 2 |
| Peripherals | NES Controller |

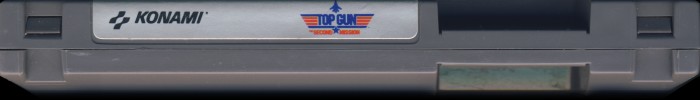

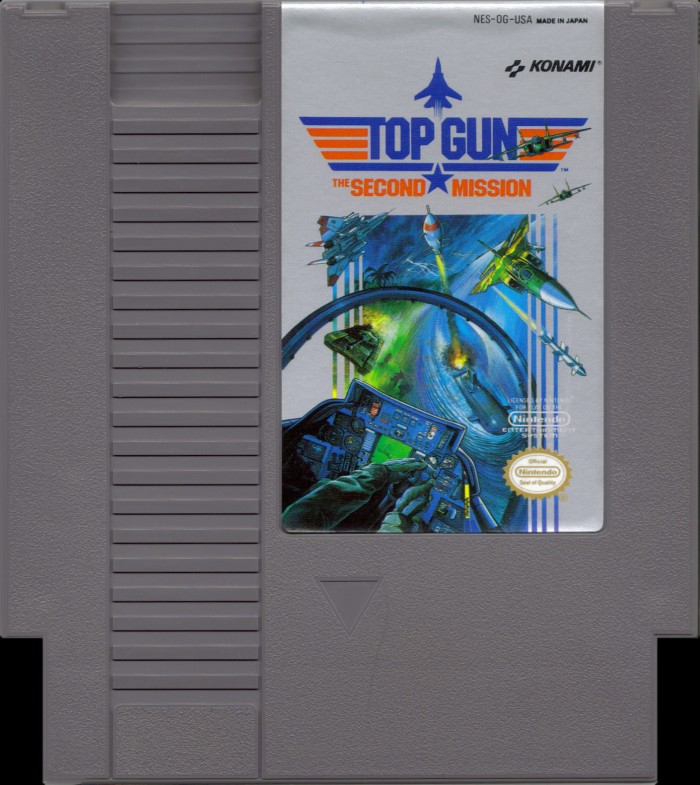

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-OG-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 24 |
PCB Properties
| Name | 352026 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 9012 |
| Est First Run | March 1990 |
| PCB Class | KONAMI-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx32, MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RD022N3P | 128 KB | E3765667 | 2 |
| CHR0 | RD022N1C | 128 KB | DD752C05 | 6 |
| N/A | ROMs Combined | 256 KB | 6F8AF3E8 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|
