Release Info
| Catalog ID | NES-OG-UKV |
|---|---|
| Region | United Kingdom (PAL-A) |
| Class | Licensed |
| Release Date | October 24, 1991 |
| Publisher | Konami |
| Developer | Konami |
| Players | 2 |
| Peripherals | NES Controller |

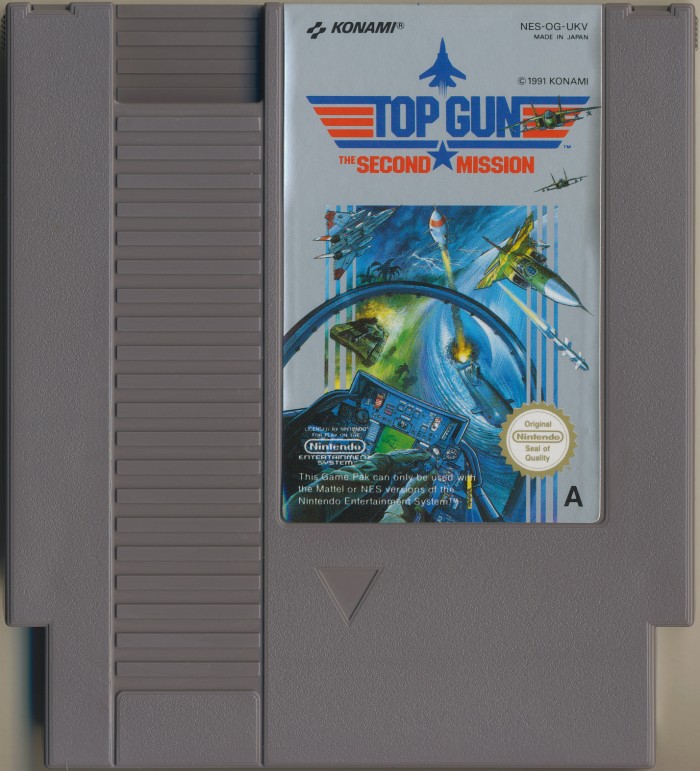

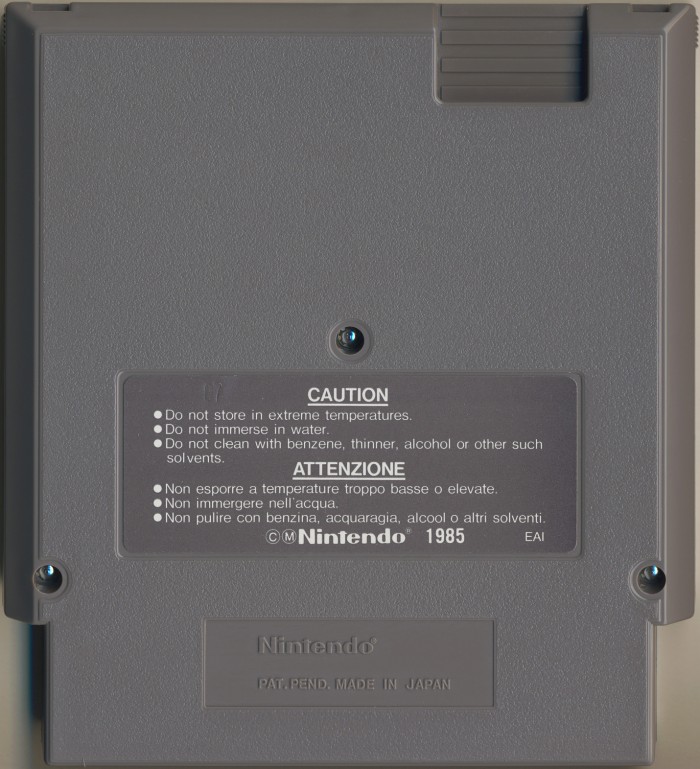

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-OG-UKV |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 07 |

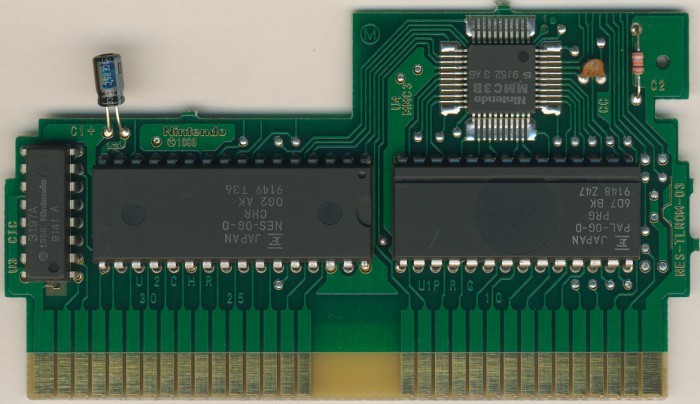

PCB Properties
| Name | NES-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9152 |
| Est First Run | December 1991 |
| PCB Class | NES-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3197A |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-OG-0 PRG | 128 KB | BCEA2BA6 | 4 |
| CHR0 | NES-OG-0 CHR | 128 KB | DD752C05 | 6 |
| N/A | ROMs Combined | 256 KB | E1C59D94 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Fujitsu | MB831002 | Mask ROM 128 KB | DIP-28 | 9148 Z47 | 9148 | |
| U2 CHR | Fujitsu | MB831003 | Mask ROM 128 KB | DIP-32 | 9149 T36 | 9149 | |
| U3 CIC | Sharp | 3197A | Nintendo CIC | DIP-16 | 9141 A | 9141 | |
| U4 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9152 3 AB | 9152 |
